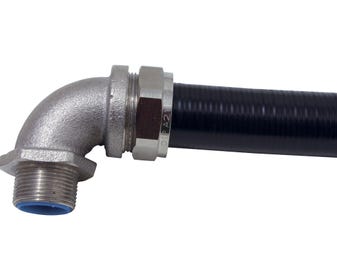

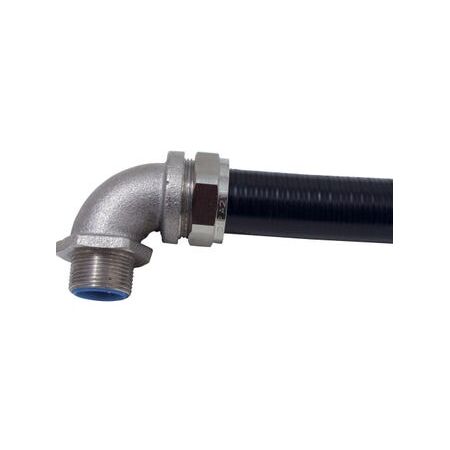

Liquid Tight 90 Degree Stainless Steel Fitting | 32mm Thread Size | Dust Proof & Liquid Tight Seal | IEC Ex Certified by Cabac
The Cabac Liquid Tight 90 Degree Stainless Steel Fitting 32mm offers reliable wiring protection with superior corrosion resistance and a liquid tight seal, ideal for industrial and commercial conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Tight 90 DEG S/Steel Fitting 32MM
Brand: Cabac
SKU: LTCM-S23
Alternatively Known As: Liquid Tight 90 Degree Conduit Fitting, Stainless Steel Conduit Connector, 90° Liquid Tight Fitting, 32mm Liquid Tight Connector
Technical Specifications
- Connector body: 304 Stainless Steel
- Hexagonal nut: 304 Stainless Steel
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: 32mm
- Conduit size: 32mm
- Dust proof and liquid tight seal
- Mechanical and environmental protection
- Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Dimensions (H x L x W): 80mm x 46.5mm x 55mm
- Weight: 0.3 kg
Key Features
- 304 grade stainless steel construction for superior corrosion and chemical resistance
- Male thread with external thread for threaded entries and knockouts
- Dust proof, liquid tight seal providing mechanical and environmental protection
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting for easy use
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
- Supports safe and secure wiring installations reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Liquid Tight 90 Degree Stainless Steel Fitting 32mm is available now for immediate purchase. Ideal for industrial, commercial, and hazardous area conduit wiring applications.
