Liquid Tight Conduit 20mm | Galvanised Steel Core | UV Stabilised PVC Jacket | 10m Length by Cabac

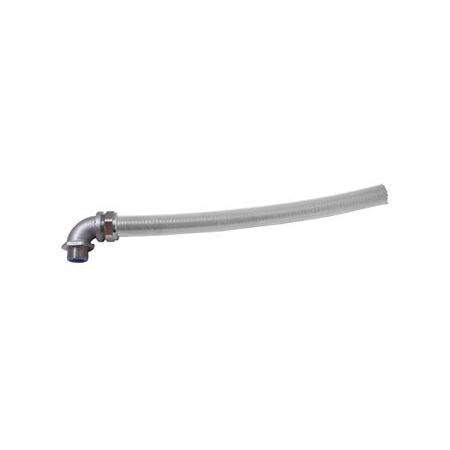

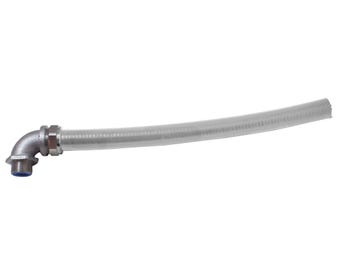

The Cabac CONDUIT CLT Galvanised Steel PVC NC20X10M Grey is a heavy-duty, flexible liquid tight conduit with a galvanised steel core and UV stabilised PVC jacket, ideal for commercial and industrial cable protection indoors and outdoors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT CLT GALVANISED STEEL PVC NC20X10M GREY
Brand: Cabac
SKU: CLT20GR-10
Alternatively Known As: Liquid Tight Steel Conduit, Spiral Wound Galvanised Conduit, Flexible Metal Conduit, PVC Coated Steel Conduit
Technical Specifications
- Material: Galvanised steel core with grey PVC jacket
- Compression Resistance: 1250 Newtons
- Operating Temperature: -10 to +105 degrees Celsius
- Nominal Size: 20mm
- Trade Size: 1/2 inch
- Inner Diameter (ID): 16.1mm
- Outer Diameter (OD): 21.1mm
- Minimum Bend Radius: 65mm
- Length: 10 meters
- Non-flame propagating
- Resistant to oils, acids, and vapours
- Dimensions (H x L x W): 21mm x 10000mm x 21mm
- Weight: 1.5 kg
Key Features
- Heavy-duty spiral wound, interlocked galvanised steel core for excellent strength and flexibility
- Durable UV stabilised grey PVC jacket providing liquid tight protection
- Non-flame propagating and resistant to most oils, acids, and vapours
- Compression resistance of 1250 Newtons
- Operating temperature range from -10 to +105 degrees Celsius
- Meets IP66 ingress protection rating with appropriate CABFLX fittings
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with electrical safety standards and proper sealing for liquid tight integrity.
Applications
- Commercial cable protection projects
- Industrial cable installations requiring liquid tight conduit
- Indoor and outdoor cable management systems
Standards & Compliance
- Complies with AS/NZS 2053.1:2001 and AS/NZS 2053.8:1995 for metallic conduits
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- UV stabilised PVC jacket extends product life in outdoor environments
- Corrosion resistance reduces environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please contact Cabac for specific warranty details.
Available Now
The Cabac CONDUIT CLT Galvanised Steel PVC NC20X10M Grey is available for immediate purchase, ideal for commercial and industrial cable protection applications.
