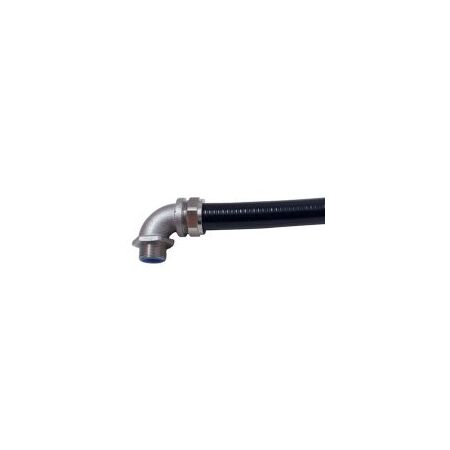

Liquid Tight Conduit 25mm Gal Steel PVC Black Roll of 150m Cabac
Cabac liquid tight conduit 25mm, galvanised steel core with UV stabilised black PVC jacket, roll of 150m. 1250N rated, -10 to +105 deg C. Ideal for industrial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Liquid Tight Flexible Metallic Conduit, PVC-Coated Galvanised Steel Conduit, Liquid Tight Electrical Conduit
Technical Specifications
- Product Code: CLT25BK-150
- Material: Spiral-wound galvanised steel core with black PVC jacket
- Nominal Size: 25mm
- Trade Size: 3/4 inch
- Internal Diameter: 21.0mm
- External Diameter: 26.5mm
- Compression Resistance: 1250N heavy-duty rating
- Minimum Bend Radius: 75mm
- Operating Temperature: -10°C to +105°C
- Ingress Protection: IP66 when used with compatible CABFLX fittings
- Jacket Properties: UV stabilised, chemical and oil resistant, non-flame propagating
- Roll Length: 150m
- Dimensions (H x L x W): 26.5mm x 150000mm x 26.5mm
- Weight: 85 kg
Key Features
- Heavy-duty flexible metallic conduit for industrial and commercial cable protection
- Liquid-tight construction using a galvanised steel core and PVC outer jacket
- UV-stabilised black PVC suitable for indoor and outdoor installations
- Resistant to many oils, acids, chemicals and vapours
- 1250N compression resistance for demanding mechanical protection
- IP66 performance when installed with compatible CABFLX fittings
- Supplied as a 150m roll for larger installation projects
- Custom cut lengths and pre-termination may be available on request
Professional Installation Requirements
- Installation should be performed by a qualified electrician in accordance with applicable electrical installation requirements. Use compatible CABFLX fittings to achieve liquid-tight and IP66 performance.
Applications
- Industrial electrical cable protection
- Commercial electrical installations
- Outdoor and exposed cable routes
- Machinery and control-panel wiring
- Cable protection in areas subject to moisture, oils, chemicals or mechanical impact
- Mining, utilities and general industrial environments
Standards & Compliance
- AS/NZS 2053.1:2001 - Conduit systems for cable management, general requirements
- AS/NZS 2053.8:1995 - Flexible conduits and fittings of metal or composite material
Environmental Benefits
- Galvanised steel is recyclable at end of service life
- Durable mechanical and environmental protection can extend the service life of protected cables and reduce replacement waste
- UV and chemical resistance supports longer service in exposed installations
Warranty Information
CABAC’s general warranty provides repair or replacement for defective goods, subject to the manufacturer’s terms and correct use. Where no product-specific period is stated, CABAC’s published terms indicate a 12-month warranty from the date of purchase, in addition to applicable Australian Consumer Law rights.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock and order requirements.
