Liquid Tight Conduit 25mm | Galvanised Steel Core | UV Stabilised PVC Jacket | 25m by Cabac

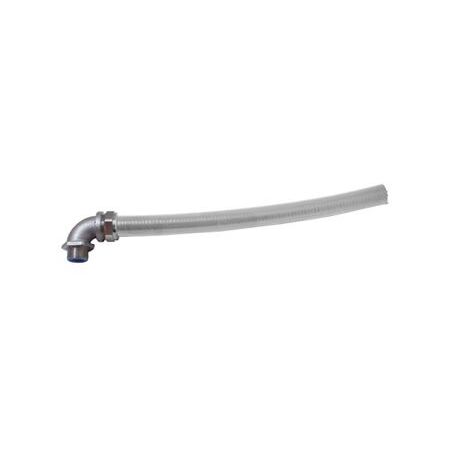

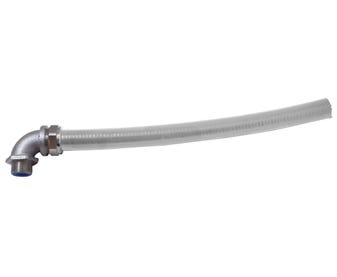

The Cabac CONDUIT CLT Galvanised Steel PVC NC25X25M Grey is a heavy-duty, flexible spiral wound conduit with a galvanised steel core and UV stabilised PVC jacket, offering superior cable protection for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT CLT GALVANISED STEEL PVC NC25X25M GREY
Brand: Cabac
SKU: CLT25GR
Alternatively Known As: Liquid Tight Conduit, Spiral Wound Steel Conduit, Galvanised Steel Flexible Conduit, PVC Jacketed Conduit
Technical Specifications
- Material: Galvanised steel core with grey PVC jacket
- Compression Resistance: 1250 Newtons
- Operating Temperature: -10 to +105 degrees Celsius
- Nominal Size: 25mm
- Trade Size: 3/4 inch
- Inner Diameter (ID): 21.0mm
- Outer Diameter (OD): 26.5mm
- Minimum Bend Radius: 75mm
- Length: 25 meters
- Dimensions (H x L x W): 26.5mm x 25000mm x 26.5mm
- Weight: 2.5 kg
Key Features
- Heavy-duty steel conduit with spiral wound, interlocked galvanised steel core for strength and flexibility
- Durable UV stabilised grey PVC jacket providing liquid tight protection
- Non-flame propagating and resistant to oils, acids, and vapours
- Compression resistance of 1250 Newtons
- Operating temperature range from -10 to +105 degrees Celsius
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Commercial and industrial cable protection
- Indoor and outdoor cable installation projects requiring liquid tight conduit systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- UV stabilised PVC jacket extends product life in outdoor environments
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac CONDUIT CLT Galvanised Steel PVC NC25X25M Grey is available for immediate purchase, ideal for commercial and industrial cable protection applications.
