Liquid Tight Conduit 32mm | Galvanised Steel Core | UV Stabilised PVC Jacket | 25m by Cabac

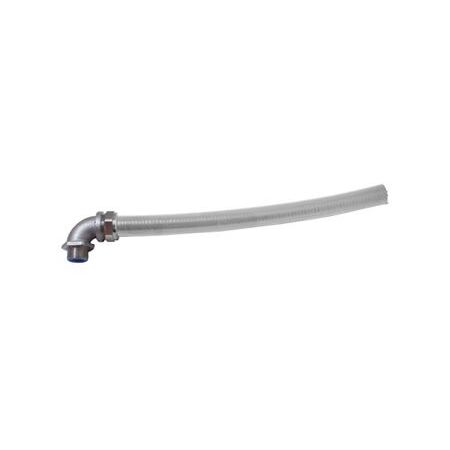

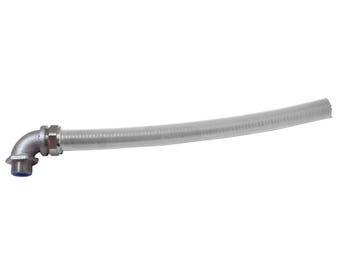

The Cabac CONDUIT CLT Galvanised Steel PVC NC32X25M Grey is a heavy-duty, flexible liquid tight conduit with a galvanised steel core and UV stabilised PVC jacket, ideal for commercial and industrial cable protection indoors and outdoors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT CLT GALVANISED STEEL PVC NC32X25M GREY
Brand: Cabac
SKU: CLT32GR
Alternatively Known As: Liquid Tight Conduit, Spiral Wound Steel Conduit, Galvanised Steel Flexible Conduit, PVC Coated Steel Conduit
Technical Specifications
- Material: Galvanised steel core with grey PVC jacket
- Compression Resistance: 1250 Newtons
- Operating Temperature: -10 to +105 degrees Celsius
- Nominal Size: 32mm
- Trade Size: 1 inch
- Inner Diameter (ID): 26.5mm
- Outer Diameter (OD): 33.1mm
- Minimum Bend Radius: 100mm
- Length: 25 meters
- Dimensions (H x L x W): 33mm x 25000mm x 33mm
- Weight: 3.5 kg
Key Features
- Heavy-duty spiral wound, interlocked galvanised steel core for excellent strength and flexibility
- Durable UV stabilised grey PVC jacket providing liquid tight protection
- Non-flame propagating and resistant to most oils, acids, and vapours
- Compression resistance of 1250 Newtons
- Operating temperature range from -10 to +105 degrees Celsius
- Suitable for indoor and outdoor use
Professional Installation Requirements
- Professional installation by a qualified electrician or cable installer is recommended to ensure compliance with electrical safety standards and optimal conduit performance.
Applications
- Commercial cable protection installations
- Industrial cable management projects
- Indoor and outdoor cable installations requiring liquid tight conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- UV stabilised PVC jacket extends product life in outdoor environments
- Corrosion resistance reduces environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac CONDUIT CLT Galvanised Steel PVC NC32X25M Grey is available for immediate purchase, ideal for commercial and industrial cable protection applications.
