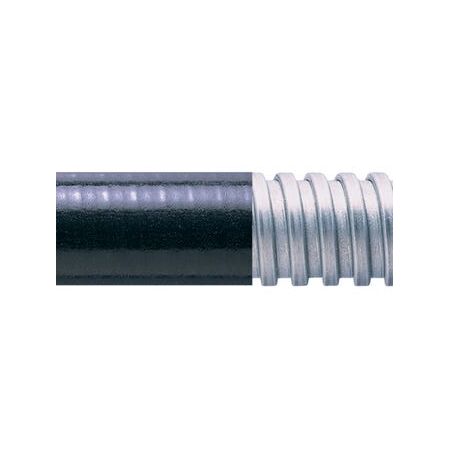

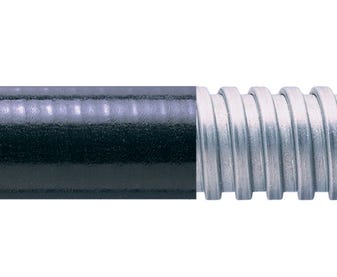

Liquid Tight Conduit 32mm | IP68 & UV Resistant | Galvanised Steel & PVC | Black by Cabac
The Cabac CONDUIT SPL Galvanised Steel PVC NC32X50M Black is a liquid-tight conduit offering robust protection with high UV resistance and mechanical strength, suitable for industrial, mining, and utility applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT SPL GALVANISED STEEL PVC NC32X50M BLACK
Brand: Cabac
SKU: SPL32/50M
Alternatively Known As: Liquid Tight Conduit, Galvanised Steel PVC Conduit, SPL Conduit, Industrial Liquid Tight Conduit, UV Resistant Conduit
Technical Specifications
- Material: Galvanised steel core with durable PVC cover
- Temperature Range: -20ºC to +105ºC suitable for static and dynamic applications
- Ingress Protection: IP66, IP67, IP68 (10 bar 30 mins), IP69 depending on fittings used
- Certifications: BSI Kitemark KM-35161, Low Voltage Directive, UL Recognised E135398
- Standards: AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- UV Resistance: Very high
- Flexibility: Medium
- Fire Safety: Self-extinguishing
- Dimensions (H x L x W): 32mm x 50000mm x 32mm
- Weight: 5 kg
Key Features
- IP Rating up to IP68 & IP69 with appropriate fittings
- Very high UV resistance ideal for external use in extreme conditions
- Medium flexibility and medium fatigue life for adaptability
- Self-extinguishing fire safety properties
- High mechanical strength for durability and long-lasting performance
- High chemical resistance ensuring reliability in challenging environments
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with liquid-tight conduit systems and compliant with relevant safety standards.
Applications
- Industry Processing: Food, Chemical, Feed, Beverages
- Wood, Chemicals
- OEM (Original Equipment Manufacturer): Automation, Machines & Panel Building
- Utility: Power
- Mining Equipment
- Suitable for indoor/outdoor applications including marine and buildings
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Durable construction reduces need for frequent replacement, minimizing waste
- High UV resistance extends product life in outdoor environments
- Chemical resistance reduces environmental contamination risk from conduit failure
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Cabac CONDUIT SPL Galvanised Steel PVC NC32X50M Black is available for immediate purchase, ideal for industrial, mining, utility, and marine applications requiring durable liquid-tight conduit protection.
