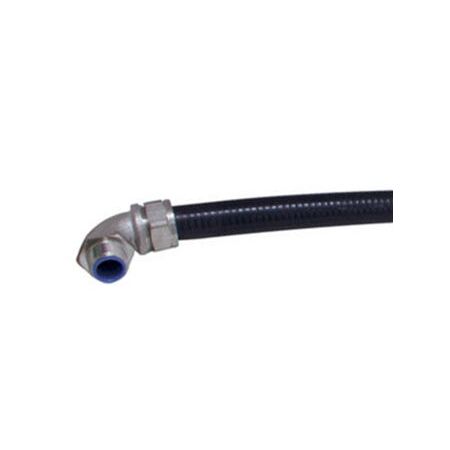

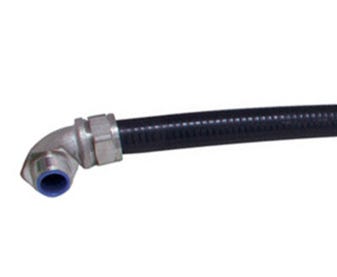

Liquid Tight Conduit 32mm SS304 PVC Black Roll of 120m Cabac
Cabac liquid tight flexible conduit 32mm with 304 stainless steel core and black PVC jacket, roll of 120m. Ideal for corrosive and washdown environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Liquid Tight Flexible Metallic Conduit, Stainless Steel Liquid Tight Conduit, CABFLX CSS32BK-120, PVC-Coated Stainless Steel Conduit
Technical Specifications
- Material: 304-grade stainless steel core with PVC jacket
- Nominal Conduit Size: 32 mm
- Trade Size: 1 inch
- Internal Diameter: 26.7 mm
- External Diameter: 33.1 mm
- Length: 120 m drum
- Minimum Bend Radius: 120 mm
- Compression Resistance: 1250 N
- Operating Temperature: -10°C to +105°C
- Ingress Protection: IP66 when used with CABFLX fittings
- Flame Performance: Non-flame propagating
- Chemical Resistance: Resistant to most oils, acids and vapours
- Colour: Black
- Dimensions (H x L x W): 800mm x 800mm x 400mm
- Weight: 112.0 kg
Key Features
- Liquid tight and dust-resistant conduit system when used with compatible CABFLX fittings
- 304 stainless steel core provides enhanced corrosion resistance in harsh environments
- UV-stabilised black PVC jacket for indoor and outdoor installations
- Heavy-duty mechanical protection for electrical and control cabling
- Suitable for corrosive, wet, washdown and industrial environments
- Flexible construction simplifies routing around equipment and confined spaces
- 120 m drum format for larger installations
Professional Installation Requirements
- Installation should be carried out by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Use compatible CABFLX liquid tight fittings to achieve the stated IP66 rating.
Applications
- Industrial electrical and control wiring
- Washdown areas and food-processing environments
- Corrosive coastal, chemical-processing and water-treatment locations
- Outdoor machinery, automation and OEM equipment
- Cable protection in commercial and industrial installations
- Robotics, machinery and vibration-prone equipment
Standards & Compliance
- AS/NZS 2053.1:2001 – Conduits and fittings for electrical installations, general requirements, as stated by CABFLX documentation
- AS/NZS 2053.8:1995 – Flexible conduits and fittings of metal or composite material, as stated by CABFLX documentation
Environmental Benefits
- 304 stainless steel is durable and recyclable, supporting recovery of material at end of service life
- Corrosion-resistant construction can extend service life and reduce replacement waste in harsh environments
- Provides mechanical and environmental protection that can help reduce premature cable replacement
- UV-stabilised jacket supports longer outdoor service life
Warranty Information
Cabac products are generally covered by a 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct installation, use and maintenance. Australian Consumer Law guarantees also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors; 120 m drums may be supplied subject to distributor availability and order requirements.
