Trade Discount 17%

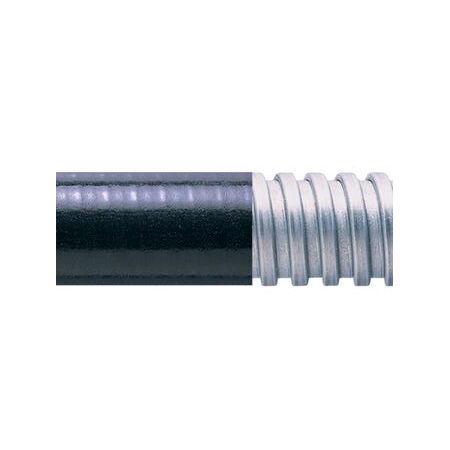

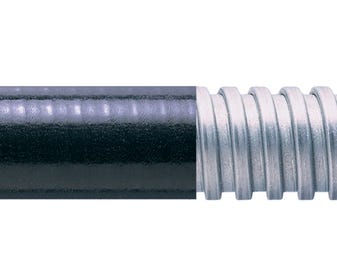

Liquid Tight Conduit 50mm | IP68 & UV Resistant | Medium Flexibility & High Mechanical Strength by Cabac
Cabac CONDUIT SPL Galvanised Steel PVC NC50X10M Black is a liquid-tight conduit with high UV resistance and mechanical strength, suitable for industrial and outdoor applications requiring robust protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT SPL GALVANISED STEEL PVC NC50X10M BLACK
Brand: Cabac
SKU: SPL50/10M
Alternatively Known As: Liquid Tight Conduit, Galvanised Steel PVC Conduit, SPL Conduit, Industrial Liquid Tight Conduit, UV Resistant Conduit
Technical Specifications
- Material: Galvanised steel core with durable PVC cover
- Temperature range: -20ºC to +105ºC suitable for static and dynamic applications
- Ingress Protection: IP66, IP67, IP68 (10 bar 30 mins), IP69 with appropriate SPL fittings
- Certifications: BSI Kitemark KM-35161, Low voltage directive, UL Recognised E135398
- Standards: AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- UV Resistance: Very high
- Flexibility: Medium
- Fire Safety: Self-extinguishing
- Dimensions (H x L x W): 50mm x 10000mm x 50mm
- Weight: 5 kg
Key Features
- IP Rating up to IP68 & IP69 with appropriate fittings
- Very high UV resistance for external use in extreme conditions
- Medium flexibility and medium fatigue life
- Self-extinguishing fire safety properties
- High mechanical strength for durability and long-lasting performance
- High chemical resistance ensuring reliability in challenging environments
Professional Installation Requirements
- Professional installation recommended to ensure correct fitting and maintain ingress protection ratings.
Applications
- Industry Processing: Food, Chemical, Feed, Beverages
- Wood, Chemicals
- OEM (Original Equipment Manufacturer): Automation, Machines & Panel Building
- Utility: Power
- Mining Equipment
- Suitable for indoor/outdoor applications including marine and buildings
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Durable construction reduces need for frequent replacement, minimizing waste
- High chemical resistance prevents environmental contamination
- UV resistance extends product life in outdoor environments
Warranty Information
Warranty details not specified; typically covered under manufacturer’s standard warranty.
Available Now
Available for immediate purchase, ideal for industrial, utility, mining, and outdoor applications requiring liquid-tight conduit protection.
