Liquid Tight Conduit Coupler 20mm | IP66, IP67, IP68, IP69 Rated | High Mechanical Protection | External Thread by Cabac

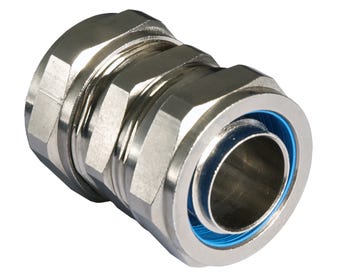

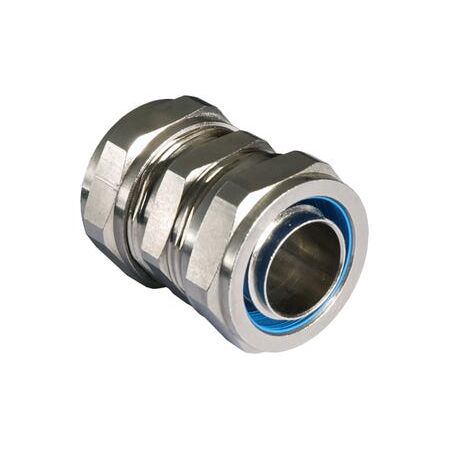

The Cabac FITTING SPL Conduit Coupler 20MM is a liquid tight straight fixed fitting with external male thread, offering high mechanical protection and multiple IP ratings for robust electrical conduit connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING SPL CONDUIT COUPLER 20MM
Brand: Cabac
SKU: SPL20/U/M
Alternatively Known As: 20mm conduit coupler, liquid tight conduit fitting, SPL conduit connector, external thread conduit coupler
Technical Specifications
- Type: Liquid tight straight fixed fitting
- Thread: External male thread
- Protection Rating: IP66, IP67, IP68, IP69
- Mechanical Protection: Very high degree
- Swivel: Allows swivel for installation only
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Liquid tight straight fixed fitting with external male thread
- Very high degree of mechanical protection
- IP66, IP67, IP68 & IP69 rated
- Designed to help maintain system integrity
- Allows swivel for installation only
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and system integrity.
Applications
- Cable and wire management systems
- Industrial and commercial electrical installations
- Environments requiring high mechanical protection and liquid tight fittings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Maintains system integrity to prevent leaks and environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac FITTING SPL Conduit Coupler 20MM is available now for immediate purchase. Ideal for use in industrial and commercial electrical conduit systems requiring high protection and liquid tight connections.
