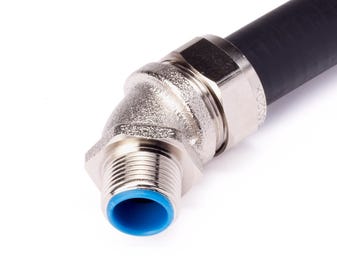

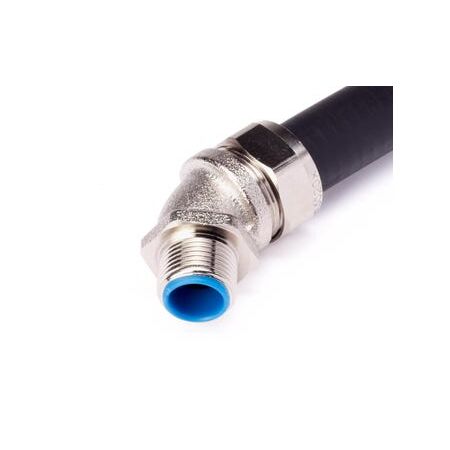

Liquid Tight Conduit Fitting 45 Degree | Nickel Plated Brass | IP66 Protection & M16 External Thread by Cabac
The Cabac CABFLX range liquid tight 45 degree conduit fitting with M16 external thread offers reliable wiring protection with high chemical resistance and mechanical strength for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING CLT/CETX 45DEG STRAIGHT FIXED EXTERNAL THREAD NPB M16
Brand: Cabac
SKU: LTCM-B309
Alternatively Known As: Liquid Tight Conduit Fitting 45 Degree, Nickel Plated Brass Conduit Connector, M16 External Thread Fitting, CABFLX 45 Degree Fitting
Technical Specifications
- Material: Nickel plated brass connector body and hexagonal nut
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M16 x 1.5
- Conduit size: 16mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 43mm x 32mm x 32mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass construction for superior durability
- 45-degree male thread fitting with external thread for threaded entries and knockouts
- Dust proof and liquid tight seal providing mechanical and environmental protection
- High chemical resistance and mechanical strength
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting on conduit until tightened
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with hazardous area requirements and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static applications
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nickel Plated Brass Liquid Tight 45 Degree Fitting M16 is available for immediate purchase, ideal for industrial and commercial wiring protection applications.
