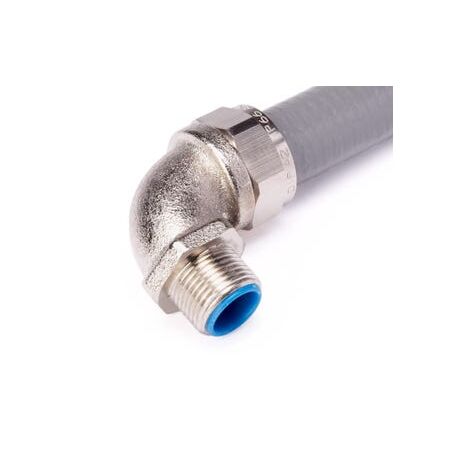

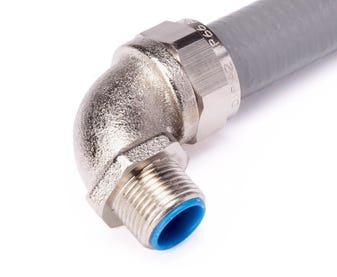

Liquid Tight Conduit Fitting 90 Degree M16 | Nickel Plated Brass | IP66 Rated | Durable Seal by Cabac
The Cabac CABFLX range liquid tight 90 degree conduit fitting with M16 external thread offers durable, chemical resistant, and mechanically strong wiring protection for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING CLT/CETX 90DEG STRAIGHT FIXED EXTERNAL THREAD NPB M16
Brand: Cabac
SKU: LTCM-B209
Alternatively Known As: Liquid Tight Conduit Fitting 90 Degree, Nickel Plated Brass Conduit Connector, M16 External Thread Fitting, CABFLX Conduit Fitting
Technical Specifications
- Material: Nickel plated brass connector body and hexagonal nut
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M16 x 1.5
- Conduit size: 16mm
- Dimensions: A=56mm, B (A/C)=32mm, C (A/C)=28mm, D=36mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 36mm x 56mm x 56mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass construction for superior durability
- 90-degree fitting with male external thread for secure attachment
- High chemical resistance and mechanical strength
- Dust proof and liquid tight seal
- Complete with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel on conduit until tightened
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with hazardous area standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Nickel Plated Brass Liquid Tight 90 Degree Fitting M16 is available now for immediate purchase. Ideal for industrial and commercial wiring protection in hazardous and demanding environments.
