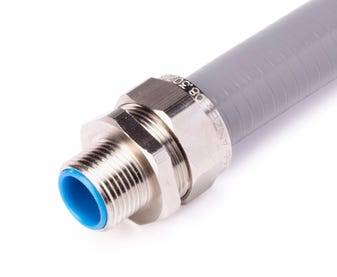

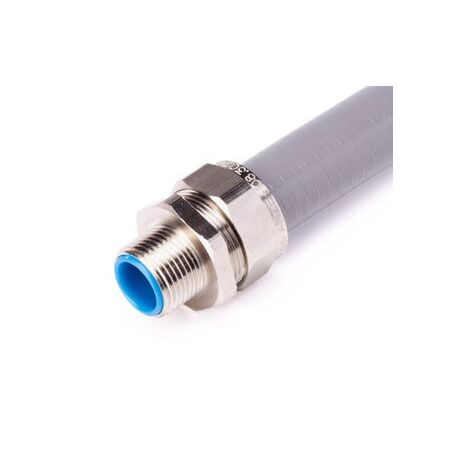

Liquid Tight Conduit Fitting M20 | Nickel Plated Brass | High Chemical Resistance & External Thread | by Cabac
The Cabac CABFLX range liquid tight conduit fitting with M20 external thread provides reliable wiring protection with high chemical resistance and mechanical strength for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING CLT/CETX STRAIGHT FIXED EXTERNAL THREAD NPB M20 NC16
Brand: Cabac
SKU: LTCM-B10
Alternatively Known As: Liquid Tight Conduit Fitting M20, Nickel Plated Brass Conduit Connector, External Thread Conduit Fitting, CABFLX Conduit Fitting
Technical Specifications
- Connector body: Nickel plated brass
- Hexagonal nut: Nickel plated brass
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M20 x 1.5
- Conduit size: 16mm
- Dimensions (H x L x W): 23mm x 12.7mm x 28mm
- Weight: 0.05 kg
Key Features
- Nickel plated brass construction for superior durability
- External male thread for threaded entries and knockouts
- High chemical resistance and mechanical strength
- Dust proof and liquid tight seal
- One-piece installation with swiveling fitting for easy use
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nickel Plated Brass Liquid Tight Conduit Fitting M20 External Thread is available now for immediate purchase. Ideal for industrial and commercial wiring protection applications.
