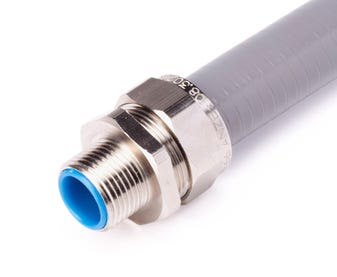

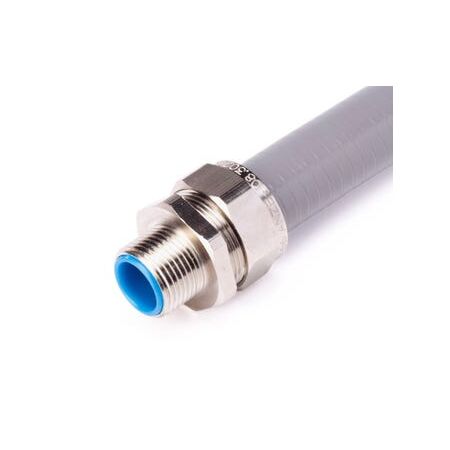

Liquid Tight Conduit Fitting M32 | Nickel Plated Brass | IP66 Protection | Easy Installation by Cabac

BRAND: CABAC
SKU: LTCM-B13
$23.70 List price: $28.70
+
The Cabac CABFLX range liquid tight conduit fitting with nickel plated brass body and M32 external thread offers reliable wiring protection with high chemical resistance and mechanical strength for industrial and commercial applications.

Product Name/Title: FITTING CLT/CETX STRAIGHT FIXED EXTERNAL THREAD NPB M32

Brand: Cabac

SKU: LTCM-B13

Alternatively Known As: Liquid Tight Conduit Fitting M32, Nickel Plated Brass Conduit Connector, External Thread Conduit Fitting, CABFLX Conduit Fitting

Technical Specifications
  • Connector body: Nickel plated brass
  • Hexagonal nut: Nickel plated brass
  • Sealing ring: Nylon 66
  • Ferrule: Galvanised steel
  • Thread size: M32 x 1.5
  • Conduit size: 32mm
  • Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
  • Ex ta IIIC IP66 Hazardous Area Type Protection
  • IEC Ex TSA 11.0026 Hazard Area Certification Number
  • Dimensions (H x L x W): 28mm x 16.3mm x 46.5mm
  • Weight: 0.1 kg
Key Features
  • Nickel plated brass construction for superior durability
  • Liquid tight seal providing dust and moisture protection
  • High chemical resistance and mechanical strength
  • One-piece installation with swivel fitting for easy use
  • Complete with sealing ring and flanged grounding cone for excellent pull-out strength
  • External male thread for secure attachment to enclosures, machinery, or bulkheads
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and proper sealing.
Applications
  • Machining centres and robotics
  • General wiring for OEM applications
  • Low fire hazard applications
  • Underfloor wiring in office buildings
  • Narrow space static installations
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable nickel plating extends product life reducing waste
  • Provides secure sealing to prevent ingress of contaminants, protecting wiring and reducing maintenance needs
Warranty Information

Warranty details available upon request from manufacturer.

Available Now

The Cabac Nickel Plated Brass Liquid Tight Straight Conduit Fitting M32 is available now for immediate purchase. Ideal for industrial and commercial wiring protection applications.
