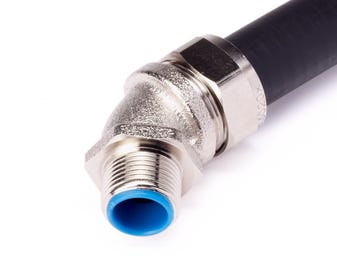

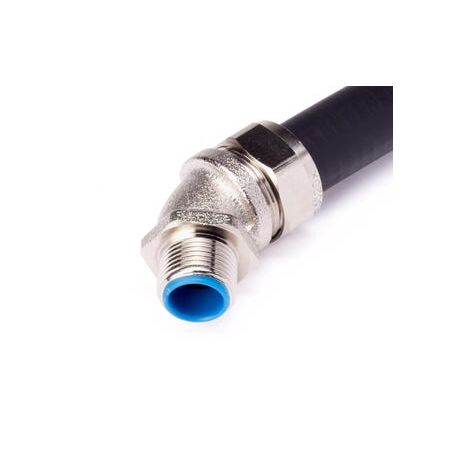

Liquid Tight Conduit Fitting M40 | Nickel Plated Brass | 45-Degree External Thread | IP66 Rated by Cabac
The Cabac Nickel Plated Brass Liquid Tight 45 Degree Fitting M40 offers reliable wiring protection with a durable, chemical resistant, and liquid tight seal ideal for industrial and commercial conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING CLT/CETX 45DEG STRAIGHT FIXED EXTERNAL THREAD NPB M40
Brand: Cabac
SKU: LTCM-B34
Alternatively Known As: Liquid Tight Conduit Fitting 45 Degree, Nickel Plated Brass Conduit Connector, M40 Liquid Tight Fitting, External Thread Conduit Fitting
Technical Specifications
- Connector body: Nickel plated brass
- Hexagonal nut: Nickel plated brass
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M40 x 1.5
- Conduit size: 40mm
- Ex ta IIIC IP66 Hazardous Area Type Protection
- Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 81mm x 81mm x 62mm
- Weight: 0.2 kg
Key Features
- Nickel plated brass construction for superior durability
- 45-degree male thread fitting with external thread for threaded entries and knockouts
- Dust proof and liquid tight seal providing mechanical and environmental protection
- High chemical resistance and mechanical strength
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel on conduit until tightened
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with hazardous area standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static applications
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and moisture, protecting electrical systems and reducing maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nickel Plated Brass Liquid Tight 45 Degree Fitting M40 is available now for immediate purchase. Ideal for industrial and commercial conduit wiring applications requiring hazardous area protection.
