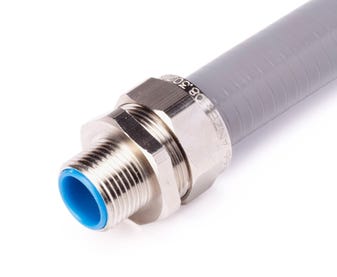

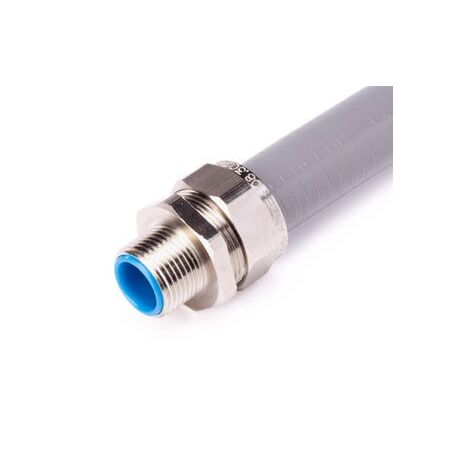

Liquid Tight Conduit Fitting Cabac Brass (Liquid Tight Conduit Fitting M40) Cabac

BRAND: CABAC
SKU: LTCM-B14
$45.50 List price: $60.70
1 EA ($45.50 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Cabac FITTING CLT CETX Straight Fixed External Thread NPB M40 is a nickel plated brass liquid tight conduit fitting designed for reliable wiring protection in
Technical Specifications
  • Connector body: Nickel plated brass
  • Hexagonal nut: Nickel plated brass
  • Sealing ring: Nylon 66
  • Ferrule: Galvanised steel
  • Thread size: M40 x 1.5
  • Conduit size: 40mm
  • Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
  • Ex ta IIIC IP66 Hazardous Area Type Protection
  • IEC Ex TSA 11.0026 Hazard Area Certification Number
  • Dimensions (H x L x W): 33mm x 18.2mm x 59mm
  • Weight: 0.1 kg
Key Features
  • Nickel plated brass construction for superior durability
  • Liquid tight seal providing dust and moisture protection
  • High chemical resistance and mechanical strength
  • One-piece installation with swivel fitting for easy use
  • Complete with sealing ring and flanged grounding cone for excellent pull-out strength
  • Male thread external thread for threaded entries and knockouts
Professional Installation Requirements
  • Installation should be performed by a qualified professional to ensure compliance with hazardous area standards and proper sealing.
Applications
  • Machining centres and robotics
  • General wiring for OEM applications
  • Low fire hazard applications
  • Underfloor wiring in office buildings
  • Narrow space static installations
Standards & Compliance
  • AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • Durable nickel plating extends product life reducing waste
  • Provides secure sealing to prevent environmental contamination
Warranty Information

Warranty details available upon request from manufacturer.

Available Now

The Cabac FITTING CLT/CETX Straight Fixed External Thread NPB M40 is available for immediate purchase, ideal for industrial and commercial wiring protection applications.
