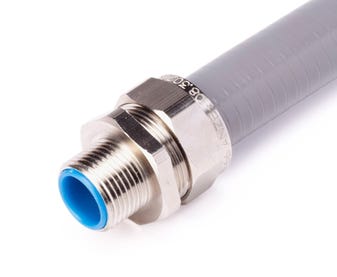

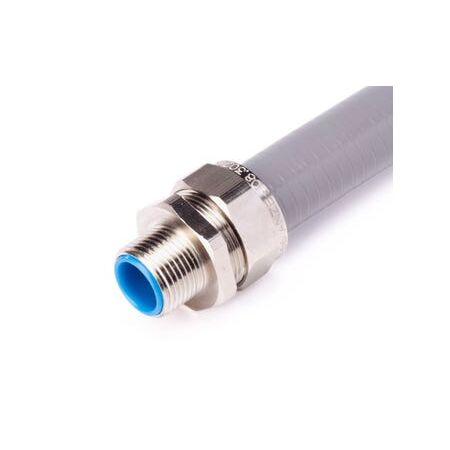

Liquid Tight Conduit Fitting M50 | Nickel Plated Brass | IP66 Protection & Easy Installation by Cabac
The Cabac FITTING CLT/CETX Straight Fixed External Thread NPB M50 is a nickel plated brass liquid tight conduit fitting designed for industrial and commercial wiring protection with high chemical resistance and mechanical strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING CLT/CETX STRAIGHT FIXED EXTERNAL THREAD NPB M50
Brand: Cabac
SKU: LTCM-B15
Alternatively Known As: Liquid Tight Conduit Fitting M50, Nickel Plated Brass Conduit Connector, External Thread Conduit Fitting, Cable Gland M50
Technical Specifications
- Connector body: Nickel plated brass
- Hexagonal nut: Nickel plated brass
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M50 x 1.5
- Conduit size: 50mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 32mm x 18.2mm x 67mm
- Weight: 0.2 kg
Key Features
- Nickel plated brass construction for superior durability
- Liquid tight seal providing dust proof and environmental protection
- High chemical resistance and mechanical strength
- One-piece installation with swivel fitting for easy use
- Complete with sealing ring and flanged grounding cone for excellent pull-out strength
- External male thread for secure attachment to enclosures, machinery, or bulkheads
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with hazardous area standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static applications
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides reliable sealing to prevent ingress of dust and moisture, protecting electrical systems and reducing maintenance needs
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac FITTING CLT/CETX Straight Fixed External Thread NPB M50 is available for immediate purchase, ideal for industrial and commercial electrical conduit applications requiring hazardous area protection.
