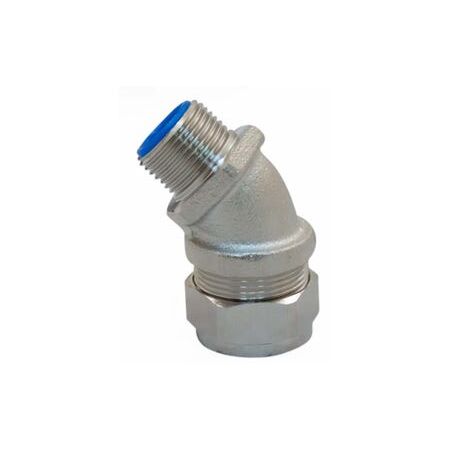

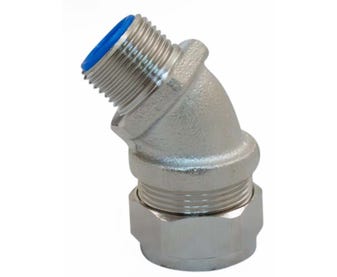

Liquid Tight Conduit Fitting M63 | 304 Stainless Steel | IP66 Rated | 45-Degree External Thread by Cabac
The Cabac 45 Degree Stainless Steel Liquid Tight Conduit Fitting M63 offers superior corrosion resistance and a reliable liquid-tight seal for industrial and commercial wiring applications, ensuring mechanical and environmental protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING CLT/CETX 45DEG STRAIGHT FIXED EXTERNAL THREAD STAINLESS STEEL M63
Brand: Cabac
SKU: LTCM-SS36
Alternatively Known As: Liquid Tight Conduit Fitting, 45 Degree Stainless Steel Conduit Connector, External Thread Conduit Fitting, M63 Liquid Tight Connector
Technical Specifications
- Connector body material: 304 Stainless Steel
- Hexagonal nut material: 304 Stainless Steel
- Sealing ring material: Nylon 66
- Ferrule material: Galvanised steel
- Thread size: 63mm
- Conduit size: 63mm
- IP rating: IP66
- Compliance: IEC 60079
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.3 kg
Key Features
- 304 stainless steel body and hexagonal nut for durability and corrosion resistance
- Galvanised steel ferrule and nylon 66 sealing ring for secure liquid-tight seal
- 45-degree external thread fitting for easy attachment to enclosures, machinery, or bulkheads
- Dust proof and liquid tight with IP66 rating
- Inherently low fire hazard design
- Vibration and tension-proof for stability in dynamic conditions
- One-piece installation with swiveling conduit attachment
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Industrial wiring protection
- Machining centres and robotics
- OEM general wiring applications
- Low fire hazard installations
- Underfloor wiring in office buildings
- Narrow space static conduit installations
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
- Low fire hazard design enhances safety and reduces environmental risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac 45 Degree Stainless Steel Liquid Tight Conduit Fitting M63 is available for immediate purchase, ideal for industrial and commercial wiring applications requiring durable and reliable conduit connections.
