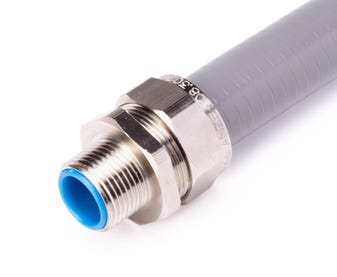

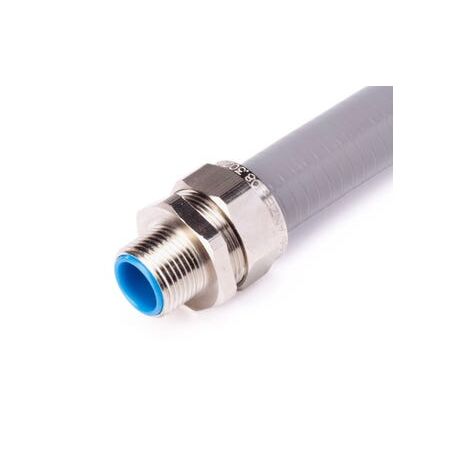

Liquid Tight Conduit Fitting M63 | Nickel Plated Brass | External Male Thread | IP66 Protection by Cabac
The Cabac CABFLX range liquid tight conduit fitting with nickel plated brass body and external male thread M63 provides reliable wiring protection with high chemical resistance and mechanical strength for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING CLT/CETX STRAIGHT FIXED EXTERNAL THREAD NPB M63
Brand: Cabac
SKU: LTCM-B16
Alternatively Known As: Liquid Tight Conduit Fitting, Nickel Plated Brass Conduit Connector, M63 Male Thread Conduit Fitting, External Thread Conduit Fitting
Technical Specifications
- Connector body: Nickel plated brass
- Hexagonal nut: Nickel plated brass
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: M63 x 1.5
- Conduit size: 63mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 34mm x 20mm x 80mm
- Weight: 0.3 kg
Key Features
- Nickel plated brass construction for superior durability
- External male thread for threaded entries and knockouts
- Dust proof and liquid tight seal providing mechanical and environmental protection
- High chemical resistance and mechanical strength
- One-piece installation with swivel fitting for easy use
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper sealing and compliance with hazardous area standards.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable nickel plating extends product life reducing waste
- Provides secure sealing to prevent ingress of dust and liquids, protecting electrical systems and reducing maintenance
Warranty Information
Warranty terms as per manufacturer standards; typically covers manufacturing defects.
Available Now
The Cabac Nickel Plated Brass Liquid Tight Straight Conduit Fitting M63 is available for immediate purchase, ideal for industrial and commercial wiring protection applications.
