Liquid Tight Conduit Galvanised Steel PVC NC25X25M | IP68 & IP69 Rated | High UV Resistance | Black by Cabac

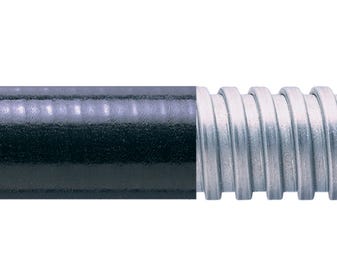

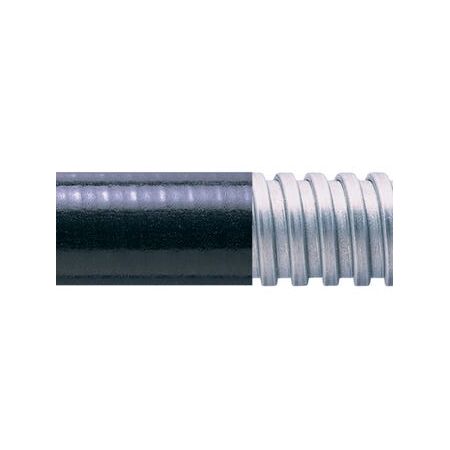

Cabac CONDUIT SPL Galvanised Steel PVC NC25X25M Black is a liquid tight conduit with high UV resistance and IP68 & IP69 ratings, designed for robust industrial applications including food, chemical, mining, and power industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT SPL GALVANISED STEEL PVC NC25X25M BLACK
Brand: Cabac
SKU: SPL25/25M
Alternatively Known As: Liquid Tight Conduit, Galvanised Steel PVC Conduit, SPL Conduit, Industrial Liquid Tight Conduit, UV Resistant Conduit
Technical Specifications
- Material: Galvanised steel core with durable PVC cover
- Temperature Range: -20ºC to +105ºC suitable for static and dynamic applications
- Ingress Protection: IP66, IP67, IP68 (10 bar 30 mins), IP69 with appropriate SPL fittings
- Certifications: BSI Kitemark KM-35161, Low voltage directive, UL Recognised E135398
- Standards Compliance: AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- UV Resistance: Very high
- Flexibility: Medium
- Fire Safety: Self-extinguishing
- Dimensions (H x L x W): 25mm x 25000mm x 25mm
- Weight: 5 kg
Key Features
- IP Rating: Up to IP68 & IP69 with appropriate fitting
- Very high UV resistance, ideal for external use in extreme conditions
- Medium flexibility and medium fatigue life for adaptability
- Self-extinguishing properties for enhanced fire safety
- High mechanical strength for durability and long-lasting performance
- High chemical resistance ensuring reliability in challenging environments
Professional Installation Requirements
- Professional installation recommended to ensure proper fitting and maintain IP ratings.
Applications
- Industry Processing: Food, Chemical, Feed, Beverages
- Wood, Chemicals
- OEM (Original Equipment Manufacturer): Automation, Machines & Panel Building
- Utility: Power
- Mining Equipment
- Suitable for indoor/outdoor applications including marine and buildings
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- High chemical resistance reduces risk of environmental contamination
- UV resistance extends product life in outdoor applications
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac CONDUIT SPL Galvanised Steel PVC NC25X25M Black is available for immediate purchase, ideal for industrial, mining, and utility applications requiring liquid-tight conduit protection.
