Liquid Tight Conduit Galvanised Steel PVC | IP68 & IP69 Rated | UV Resistant | Black by Cabac

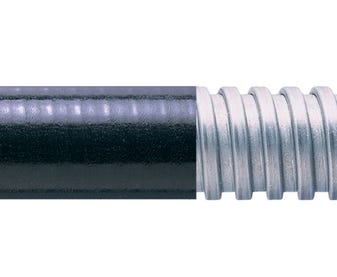

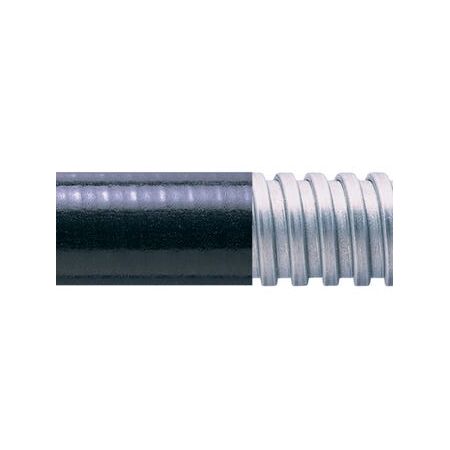

Cabac CONDUIT SPL Galvanised Steel PVC NC63X25M Black is a liquid tight conduit combining galvanized steel and durable PVC cover, designed for industrial applications requiring high mechanical strength, UV resistance, and chemical resistance with IP68 & IP69 protection ratings.
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT SPL GALVANISED STEEL PVC NC63X25M BLACK
Brand: Cabac
SKU: SPL63/25M
Alternatively Known As: Liquid Tight Conduit, Galvanised Steel PVC Conduit, SPL Conduit, Industrial Liquid Tight Conduit, UV Resistant Conduit
- Material: Galvanised steel core with PVC cover
- Temperature range: -20ºC to +105ºC suitable for static and dynamic applications
- Ingress Protection: IP66, IP67, IP68 (10 bar 30 mins), IP69 with appropriate SPL fittings
- Certifications: BSI Kitemark KM-35161, Low voltage directive, UL Recognised E135398
- Standards: AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- UV Resistance: Very high
- Flexibility: Medium
- Fatigue Life: Medium
- Fire Safety: Self-extinguishing
- Dimensions (H x L x W): 63mm x 25000mm x 63mm
- Weight: 5 kg
- IP Rating up to IP68 & IP69 with appropriate fittings
- Very high UV resistance suitable for extreme external conditions
- Medium flexibility and medium fatigue life for adaptable installations
- Self-extinguishing fire safety properties
- High mechanical strength for durability and long-lasting performance
- High chemical resistance ensuring reliability in challenging environments
- Professional installation recommended to ensure proper fitting and maintain ingress protection ratings.
- Industry Processing: Food, Chemical, Feed, Beverages
- Wood and Chemicals Industry
- OEM: Automation, Machines & Panel Building
- Utility: Power
- Mining Equipment
- Suitable for indoor and outdoor applications including marine and buildings
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
- Durable construction reduces need for frequent replacements, minimizing waste
- High UV resistance extends product life in outdoor environments
- Chemical resistance reduces environmental contamination risks
Warranty details available upon request from manufacturer.
The Cabac CONDUIT SPL Galvanised Steel PVC NC63X25M Black is available for immediate purchase, ideal for industrial, utility, and mining applications requiring liquid-tight conduit protection.
