Liquid Tight Conduit Galvanised Steel PVC | IP68 & UV Resistant | 25m Length by Cabac

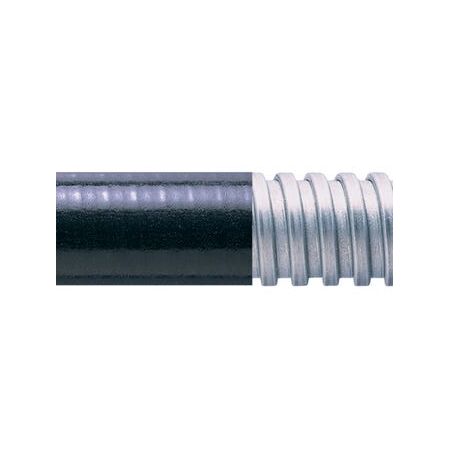

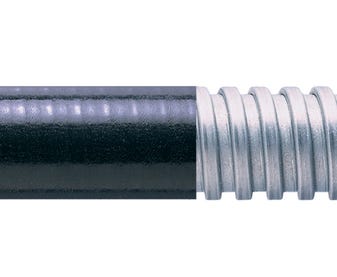

Cabac CONDUIT SPL Galvanised Steel PVC NC12X25M Black is a liquid tight conduit combining galvanized steel and durable PVC cover, offering high mechanical strength, excellent UV resistance, and IP68/IP69 protection for industrial and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT SPL GALVANISED STEEL PVC NC12X25M BLACK
Brand: Cabac
SKU: SPL12/25M
Alternatively Known As: Liquid Tight Conduit, Galvanised Steel PVC Conduit, SPL Conduit, Industrial Liquid Tight Conduit, UV Resistant Conduit
Technical Specifications
- Material: Galvanised steel core with durable PVC cover
- Temperature Range: -20ºC to +105ºC suitable for static and dynamic applications
- Ingress Protection: IP66, IP67, IP68 (10 bar 30 mins), IP69 with appropriate SPL fittings
- Certifications: BSI Kitemark KM-35161, Low Voltage Directive, UL Recognised E135398
- Compliance: AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- UV Resistance: Very high
- Flexibility: Medium
- Fatigue Life: Medium
- Fire Safety: Self-extinguishing
- Dimensions (H x L x W): 25mm x 25000mm x 25mm
- Weight: 5 kg
Key Features
- IP Rating: Up to IP68 & IP69 with appropriate fitting
- Very high UV resistance, ideal for external use in extreme conditions
- Medium flexibility and medium fatigue life for adaptability
- Self-extinguishing properties for enhanced fire safety
- High mechanical strength for durability and long-lasting performance
- High chemical resistance ensuring reliability in challenging environments
Professional Installation Requirements
- Professional installation recommended to ensure proper fitting and maintain liquid-tight integrity and compliance with safety standards.
Applications
- Industry Processing: Food, Chemical, Feed, Beverages
- Wood, Chemicals
- OEM (Original Equipment Manufacturer): Automation, Machines & Panel Building
- Utility: Power
- Mining Equipment
- Suitable for indoor/outdoor applications including marine and buildings
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- High UV resistance extends product life in outdoor environments
- Chemical resistance reduces environmental contamination risk from conduit failure
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Cabac CONDUIT SPL Galvanised Steel PVC NC12X25M Black is available for immediate purchase, ideal for industrial, utility, and outdoor applications requiring robust liquid-tight conduit solutions.
