Liquid Tight Conduit Galvanised Steel PVC | IP68 & UV Resistant | Medium Flexibility by Cabac

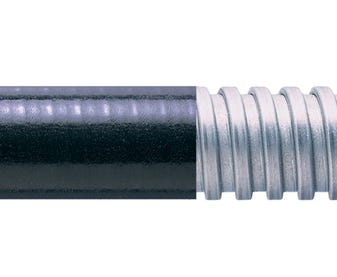

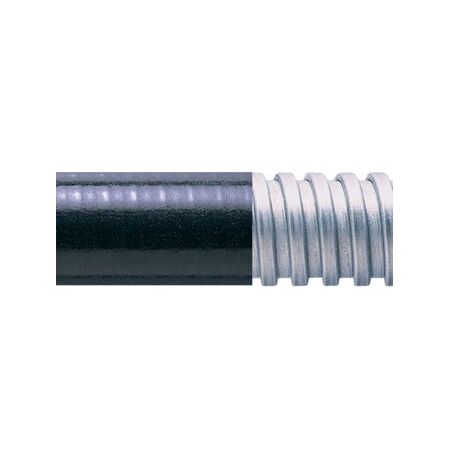

Cabac CONDUIT SPL Galvanised Steel PVC NC16X25M Black is a liquid tight conduit with high UV resistance and mechanical strength, suitable for industrial and outdoor applications requiring robust protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT SPL GALVANISED STEEL PVC NC16X25M BLACK
Brand: Cabac
SKU: SPL16/25M
Alternatively Known As: Liquid Tight Conduit, Galvanised Steel PVC Conduit, SPL Conduit, Industrial Liquid Tight Conduit, UV Resistant Conduit
Technical Specifications
- Material: Galvanised steel core with durable PVC cover
- Temperature range: -20ºC to +105ºC suitable for static and dynamic applications
- Ingress Protection: IP66, IP67, IP68 (10 bar 30 mins), IP69 with appropriate SPL fittings
- Certifications: BSI Kitemark KM-35161, Low voltage directive, UL Recognised E135398
- Compliance: AS/NZS 2053.1:2001, AS/NZS 2053.8:1995
- UV Resistance: Very high
- Flexibility: Medium
- Fire Safety: Self-extinguishing
- Dimensions (H x L x W): 25mm x 25000mm x 25mm
- Weight: 3 kg
Key Features
- IP Rating up to IP68 & IP69 with appropriate fittings
- Very high UV resistance for external use in extreme conditions
- Medium flexibility and medium fatigue life
- Self-extinguishing fire safety properties
- High mechanical strength for durability
- High chemical resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with conduit systems and compliance with relevant electrical and safety standards.
Applications
- Industry Processing: Food, Chemical, Feed, Beverages
- Wood and Chemicals
- OEM: Automation, Machines & Panel Building
- Utility: Power
- Mining Equipment
- Suitable for indoor and outdoor applications including marine and buildings
Standards & Compliance
- AS/NZS 2053.1:2001
- AS/NZS 2053.8:1995
Environmental Benefits
- Durable construction reduces need for frequent replacement, minimizing waste
- High chemical resistance prevents environmental contamination
- UV resistance extends product life in outdoor environments
Warranty Information
Warranty details not specified; typically covered by manufacturer warranty against defects.
Available Now
The Cabac CONDUIT SPL Galvanised Steel PVC NC16X25M Black is available for immediate purchase, ideal for industrial, utility, and mining applications requiring liquid-tight conduit protection.
