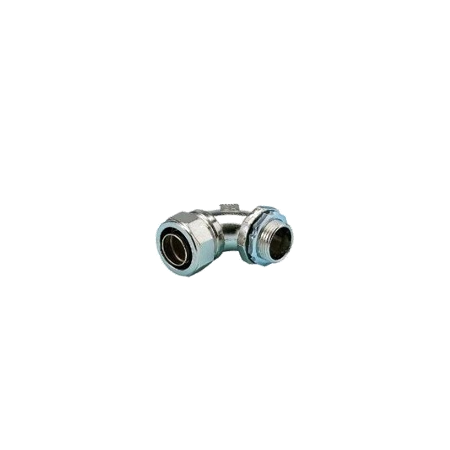

Liquid Tight Connector 90 Degree 63mm | IP66 Waterproof | Nickel Plated Steel | Flexible Design by United Manufacturers Australia
Liquid tight connector with a 90-degree angle and 63mm cable flex size—ideal for industrial and commercial electrical conduit applications. Built for durability with nickel plated steel and IP66 waterproof rating, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Tight Connector 90 Degree 63mm | IP66 Waterproof | Nickel Plated Steel | Flexible Design by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: LTC-63-90
Alternatively Known As: 90 Degree Liquid Tight Connector, Waterproof Conduit Connector, Nickel Plated Steel Liquid Tight Connector
Technical Specifications
- Material: Nickel Plated Steel S27 and S24
- Insert Material: TPE/Rubber and NBR
- Ferrule Material: Galvanized Steel
- Waterproof Rating: IP66
- Temperature Range: -40°C to 105°C
- Resistance: Dust proof, salt resistance, acid and alkali resistance, alcohol, grease, and common solvent resistance
- Cable Flex Size: 63mm
- Angle: 90 Degree
- Dimensions (H x L x W): 63mm x 63mm x 63mm
- Weight: 0.2 kg
Key Features
- Nickel plated steel construction for durability
- Insert made of TPE/Rubber and NBR for flexibility and sealing
- Low smoke halogen-free materials for safety
- Galvanized steel ferrule for corrosion resistance
- Waterproof rating of IP66
- Temperature range from -40°C to 105°C
- Resistant to dust, salt, acid, alkali, alcohol, grease, and common solvents
- 90 degree angle design for flexible conduit routing
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper waterproof sealing.
Applications
- Electrical conduit protection and connection in industrial and commercial settings
- Use in environments requiring waterproof and dustproof cable connections
- Suitable for harsh environments with exposure to chemicals, salt, and solvents
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low smoke halogen-free materials reduce toxic emissions in case of fire
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to United Manufacturers Australia for specific warranty details.
Available Now
The Liquid Tight Connector - 90 Degree 63mm by United Manufacturers Australia is available for immediate purchase, ideal for industrial and commercial electrical conduit applications.
