Liquid Tight PVC Conduit 25MM x 30M | Flexible & UV Stabilised | Chemical Resistant by Cabac

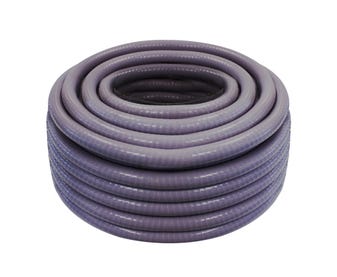

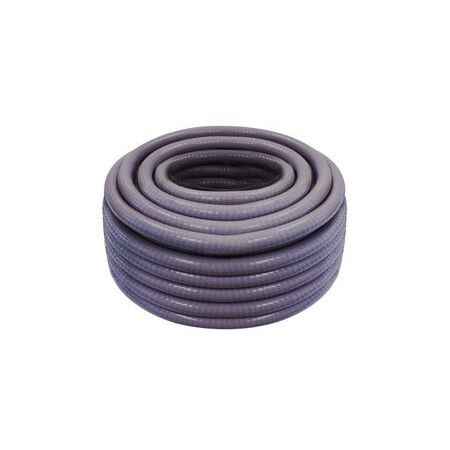

Cabac Liquid Tight Non Metal Grey 25MM X 30M PVC Conduit is a high strength, flexible, and chemically resistant conduit suitable for diverse industrial and outdoor applications including food prep and mining.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Liquid Tight Non Metal Grey 25MM X 30M
Brand: Cabac
SKU: CNM25GR-30
Alternatively Known As: Liquid Tight PVC Conduit, Non-Metallic Flexible Conduit, Grey PVC Spiral Conduit, CABFLX CNM Conduit
Technical Specifications
- Material: PVC
- Colour: Grey
- Working Temperature: -20 to +80 degrees Celsius
- Nominal Size: 25mm
- Inner Diameter (ID): 21mm
- Outer Diameter (OD): 26.4mm
- Minimum Inside Bend Radius: 108mm
- Carton Reel Length: 30m
- Dimensions (H x L x W): 264mm x 30000mm x 264mm
- Weight: 1.5 kg
Key Features
- Flexible spiral wound PVC conduit with very hard PVC spiral encased in PVC outer jacket
- High strength and smooth bore conduit
- UV stabilised grey PVC jacket
- Operating temperature range from -20 to +80 degrees Celsius
- Superior chemical resistance including resistance to sunlight, mild acids, alkalis, and oils
- Excellent abrasion protection
- Compatible with CABFLX steel, brass, and stainless steel liquid tight fittings
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure compliance with electrical standards and safety.
Applications
- Food preparation environments
- Mining applications
- Machine wiring
- Air conditioning hook-ups
- Outdoor industrial applications
- Water treatment facilities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV stabilisation extends product life in outdoor environments, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Liquid Tight Non Metal Grey 25MM X 30M PVC Conduit is available now for immediate purchase. Ideal for industrial, commercial, and outdoor electrical wiring applications.
