Liquid Tight Straight Fitting M25 | Nickel Plated Brass | -65 to +150°C | Fixed External Threads by Cabac

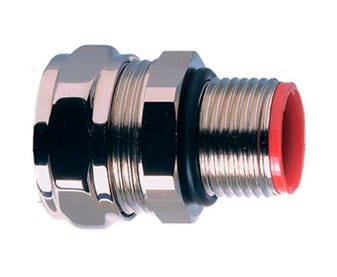

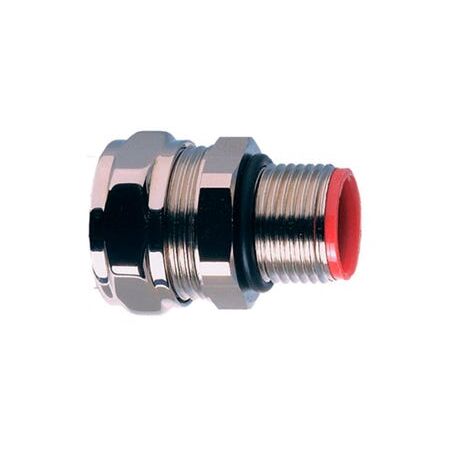

The Cabac Fitting SPL Straight Fixed M25 is a durable liquid tight fitting designed for secure conduit connections with fixed external threads, suitable for a wide temperature range and multiple conduit types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: FITTING SPL STRAIGHT FIXED M25
Brand: Cabac
SKU: SPL25/M25/A
Alternatively Known As: Liquid Tight Straight Fitting M25, SPL25/M25/A Fitting, Nickel Plated Brass Conduit Fitting
Technical Specifications
- Material: Nickel plated brass
- Temperature range: -65 to +150 degrees Celsius (static applications)
- Thread type: Fixed external threads
- Compatible conduit types: SPL, SPLHC, SPUL, SPL-EF, LFH-SPL
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Liquid tight straight fitting with fixed external threads
- Nickel plated brass construction for durability and corrosion resistance
- Temperature range from -65 to +150 degrees Celsius in static applications
- Compatible with multiple conduit types: SPL, SPLHC, SPUL, SPL-EF, LFH-SPL
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical conduit installations requiring liquid tight fittings
- Use with SPL, SPLHC, SPUL, SPL-EF, and LFH-SPL conduit types
- Suitable for industrial and commercial electrical wiring protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel plated brass reduces need for frequent replacements, minimizing waste
- Supports secure conduit connections that protect wiring and reduce electrical hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac Fitting SPL Straight Fixed M25 is available for immediate purchase, ideal for electrical conduit installations requiring liquid tight fittings.
