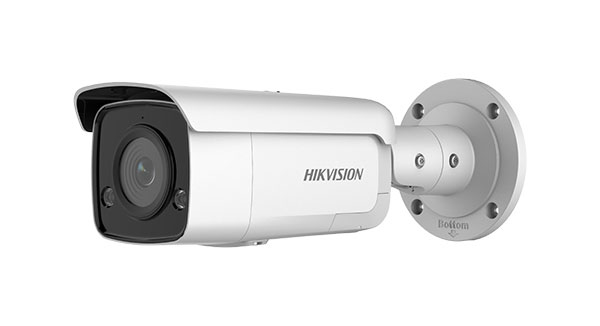

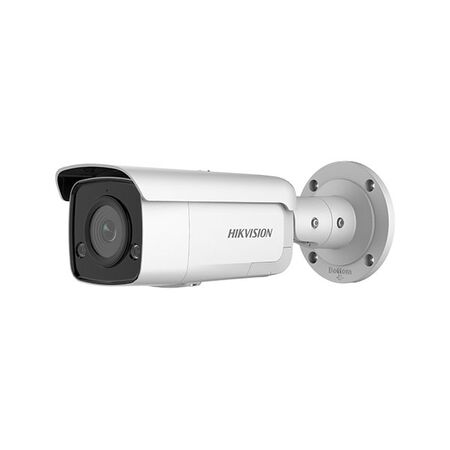

Liveguard Bullet Camera 6MP 2.8mm DS-2CD2T66G2-ISU/SL Hikvision
Hikvision Liveguard bullet camera features 6MP resolution and a 2.8mm lens. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2T66G2-ISU/SL, 6MP AcuSense Bullet Camera, Liveguard CCTV Bullet Camera
Technical Specifications
- Model: DS-2CD2T66G2-ISU/SL
- Resolution: 6 MP, 3200 × 1800
- Image Sensor: 1/2.4 inch progressive scan CMOS
- Lens: Fixed 2.8 mm lens, F1.6 aperture
- Horizontal Field of View: Approximately 105°
- Low-Light Performance: 0.003 lux colour; 0 lux with IR
- Wide Dynamic Range: 120 dB true WDR
- IR Range: Up to 60 m, 850 nm
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Smart Detection: Human and vehicle target classification
- Audio: Built-in microphone, speaker and two-way audio
- Deterrence: Active strobe light and audible warning
- Storage: MicroSD, microSDHC or microSDXC up to 512 GB
- Network Interface: 1 × RJ45 10/100 Mbps Ethernet
- Power Supply: 12 VDC ±25% or IEEE 802.3af PoE, Class 3
- Maximum Power Consumption: 10.5 W via DC input; 12.5 W via PoE
- Ingress Protection: IP67
- Operating Temperature: -30 °C to 60 °C
- Housing Material: Metal front cover, body and bracket
- Dimensions (H x L x W): 105mm x 287.6mm x 105mm
- Weight: 1.155 kg
Key Features
- 6 MP resolution for detailed surveillance footage
- DarkFighter technology for improved low-light imaging
- 2.8 mm fixed lens suited to wide-area coverage
- 120 dB true WDR for scenes with strong backlighting
- AcuSense deep-learning classification for human and vehicle targets
- Up to 60 m infrared illumination for night-time monitoring
- Built-in microphone and speaker for two-way audio
- Active strobe light and audible warning for intrusion deterrence
- IP67-rated housing for outdoor installation
- H.265+ compression helps reduce bandwidth and storage requirements
- MicroSD recording support up to 512 GB
- PoE connectivity simplifies power and data cabling
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or network technician. Any 230 V mains connection to the PoE switch, injector or power supply must be completed by a licensed electrician in accordance with AS/NZS 3000. Outdoor mounting, network termination, weather sealing and earthing should follow the manufacturer's instructions.
Applications
- Residential security and perimeter monitoring
- Commercial and industrial premises
- Warehouses, workshops and loading areas
- Retail and small business surveillance
- Outdoor entrances, driveways and car parks
- Sites requiring audible and visual intrusion deterrence
- IP CCTV systems using PoE network infrastructure
Standards & Compliance
- AS/NZS 62368.1:2026 is the applicable safety standard framework for audio, video and information and communications technology equipment; product-specific certification should be confirmed from supplier documentation.
- AS 4806.1 provides relevant Australian guidance for CCTV management and operation.
- AS/NZS 3000 applies to associated fixed electrical installation and mains-powered network equipment.
- AS 60529 is the referenced enclosure classification standard for the IP67 ingress-protection rating.
Environmental Benefits
- PoE operation combines power and data over a single Ethernet cable, potentially reducing cabling and installation material use
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with older codecs
- Metal construction and IP67 weather protection support a longer service life and may reduce replacement waste
- MicroSD recording can support local storage without requiring a continuously powered recorder for every installation
Warranty Information
Hikvision IP cameras supplied through Australian distribution channels are commonly covered by a 3-year back-to-base manufacturer warranty; confirm the applicable warranty period and conditions with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security, electrical and CCTV distributors.
