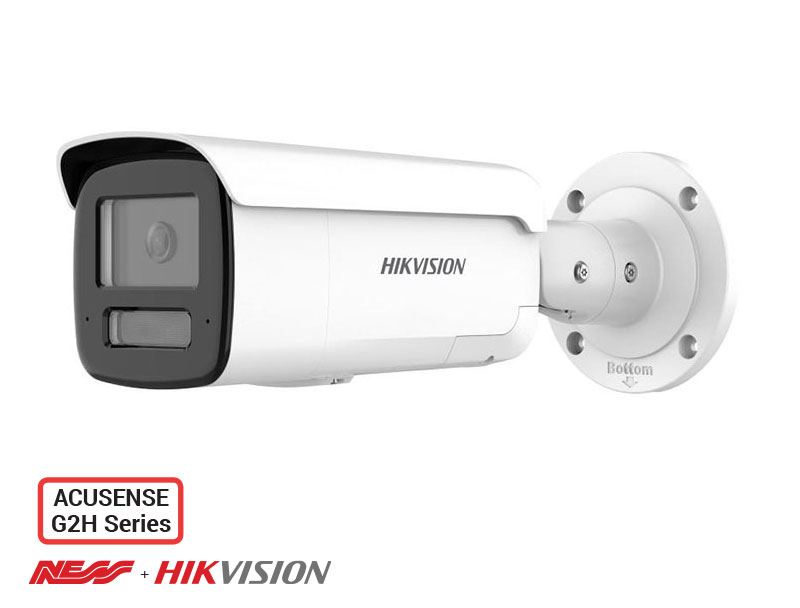

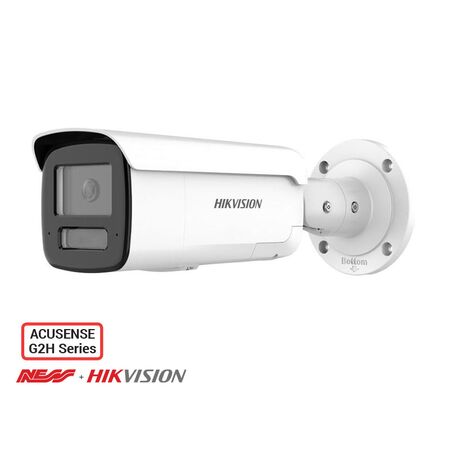

Liveguard Bullet Camera 6MP 2.8mm DS-2CD2T66G2H-IS2U/SL Hikvision
Hikvision Liveguard bullet camera features 6MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision LiveGuard Bullet Camera, Hikvision 6MP AcuSense Bullet Camera, Hikvision DS-2CD2T66G2H-IS2U/SL
Technical Specifications
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Maximum Resolution: 3200 × 1800 pixels
- Lens: Fixed 2.8 mm focal length, M12 mount
- Field of View: 115° horizontal, 60° vertical, 144° diagonal
- Aperture: F1.0 fixed iris
- Video Frame Rate: Up to 25 fps at 50 Hz or 30 fps at 60 Hz
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Wide Dynamic Range: 120 dB WDR
- Infrared Range: Up to 60 m, 850 nm IR
- DORI Range: Detect 64 m, observe 25 m, recognise 12 m, identify 6 m
- Storage: MicroSD, microSDHC or microSDXC up to 512 GB
- Audio: Two-way audio with two built-in microphones and built-in speaker
- Alarm Interfaces: 1 alarm input and 1 alarm output
- Network Interface: 10/100 Mbps self-adaptive RJ45 Ethernet
- Power: 12 VDC or IEEE 802.3at Class 4 PoE
- Maximum Power Consumption: 10.5 W at 12 VDC or 17 W via PoE
- Ingress Protection: IP67
- Operating Temperature: -30°C to 60°C
- Material: Metal front cover, body and bracket
- Dimensions (H x L x W): 90.5mm x 282mm x 93.1mm
- Weight: 1.21 kg
Key Features
- 6MP resolution for detailed surveillance footage
- 2.8mm wide-angle lens for broad scene coverage
- AcuSense deep-learning classification of people and vehicles
- Active white strobe light and audible warning for intrusion deterrence
- Built-in two-way audio with dual microphones and speaker
- 120 dB wide dynamic range for challenging backlit scenes
- Smart IR illumination up to 60 metres
- Human and vehicle perimeter protection functions
- Supports local microSD recording up to 512 GB
- ONVIF Profile S, Profile T and Profile G compatibility
- IP67 water and dust resistance
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Configure the network, PoE supply, recording system and intrusion warning functions in accordance with the project design and applicable electrical and security requirements.
Applications
- Commercial and industrial CCTV installations
- Residential and small-business security systems
- Perimeter protection and intrusion detection
- Building entrances, car parks and loading areas
- Outdoor surveillance requiring audible and visual deterrence
- Sites requiring local camera recording and network video integration
Standards & Compliance
- RCM compliance to AS/NZS CISPR 32:2015 electromagnetic compatibility requirements
- Relevant CCTV system guidance: AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- IP67 protection tested to IEC 60529:2013
Environmental Benefits
- H.265 and H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- RoHS compliance restricts the use of specified hazardous substances in electronic equipment
- IP67-rated metal construction supports extended service life in outdoor installations, reducing replacement waste
- Local microSD recording can reduce reliance on continuous upstream data transmission and central storage
Warranty Information
Hikvision warranty applies when purchased through an authorised Australian distributor. The exact warranty term should be confirmed with the supplier for the Australian model and purchase channel; Hikvision's published five-year programme applies only to specified premium project-oriented product series and has not been assumed for this camera.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional model and stock availability.
