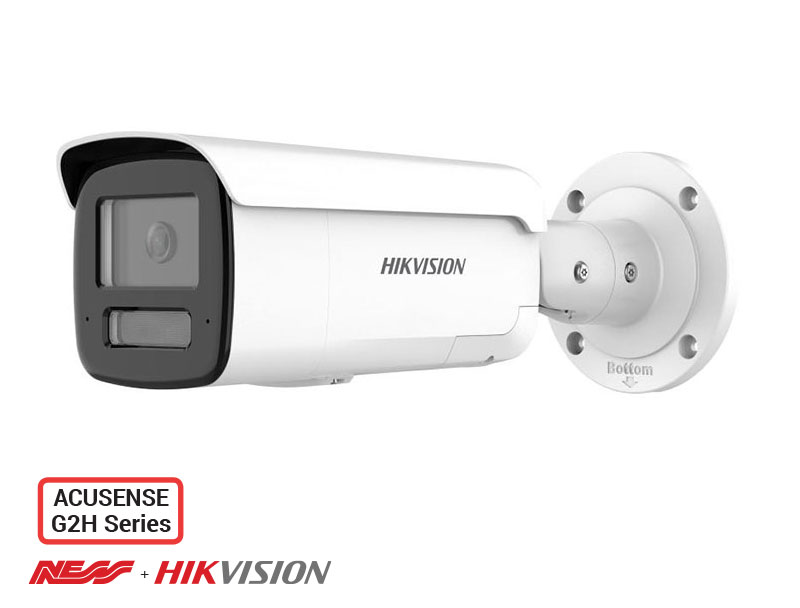

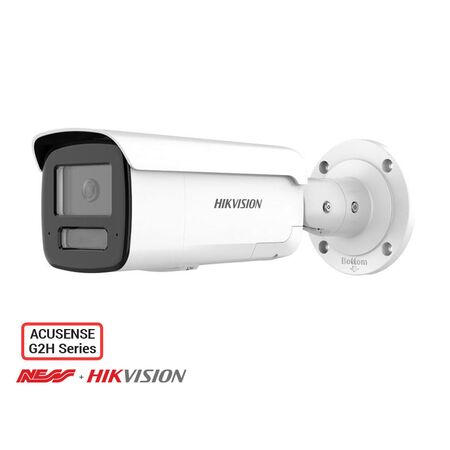

Liveguard Bullet Camera 8MP 2.8mm Hikvision
Hikvision Liveguard bullet camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP Live Guard Bullet Camera, Hikvision AcuSense Strobe Light Bullet Camera, Hikvision 4K CCTV Bullet Camera, DS-2CD2086G2-IU/SL
Technical Specifications
- Model: DS-2CD2086G2-IU/SL
- Resolution: 8MP, 3840 × 2160
- Image Sensor: 1/1.8 inch progressive scan CMOS
- Lens: 2.8mm fixed focal lens
- Horizontal Field of View: Approximately 102°
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Frame Rate: Up to 20fps at 8MP
- Low-Light Technology: Powered-by-DarkFighter
- Wide Dynamic Range: 120dB True WDR
- Illumination: Infrared, up to 40m
- Detection: AcuSense human and vehicle classification
- Deterrence: Active strobe light and audible warning
- Audio: Built-in microphone and speaker with two-way audio
- Storage: MicroSD, SDHC and SDXC up to 256GB
- Network Interface: 10/100M self-adaptive Ethernet
- Power Supply: 12V DC or PoE 802.3af, Class 3
- Maximum Power Consumption: 6.5W via 12V DC or 8W via PoE
- Ingress Protection: IP67
- Housing Material: Metal
- Dimensions (H x L x W): 73.3mm x 191.1mm x 72.9mm
- Weight: 0.595 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- 2.8mm wide-angle lens for broad scene coverage
- AcuSense technology distinguishes human and vehicle targets
- Live Guard active deterrence using a strobe light and audible warning
- Built-in microphone and speaker for two-way audio communication
- Powered-by-DarkFighter technology for improved low-light performance
- 120dB True WDR helps manage strong backlighting
- Supports PoE for combined network and power connection
- IP67-rated housing for outdoor dust and water protection
- Compatible with Hik-Connect and Hikvision network video recorders
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or low-voltage installer. Configure network, PoE, storage and alarm functions in accordance with the manufacturer's instructions and applicable Australian requirements. Mains-powered equipment and fixed electrical work must be completed by a licensed electrician where required.
Applications
- Residential CCTV and property surveillance
- Commercial and retail security installations
- Warehouses, workshops and industrial premises
- Building entrances, driveways and perimeter monitoring
- Outdoor surveillance requiring active visual and audible deterrence
- IP camera systems using PoE and network video recorders
Standards & Compliance
- RCM EMC approval to AS/NZS CISPR 32:2015 as specified by the manufacturer
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
- Outdoor installation protection classification: IP67 to IEC 60529
Environmental Benefits
- RoHS compliance helps restrict hazardous substances in the electronic assembly
- Metal housing components may be recoverable through appropriate electronic and metal recycling streams
- PoE operation can simplify cabling and reduce the need for separate power infrastructure
- Durable IP67 construction supports a longer service life and reduces replacement waste
Warranty Information
Warranty period is subject to the applicable Hikvision Australia sales terms and authorised distribution channel. Australian authorised-channel listings commonly specify a 36-month warranty for Hikvision cameras; confirm the seller's terms at purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to current model and regional stock.
