Trade Discount 25%

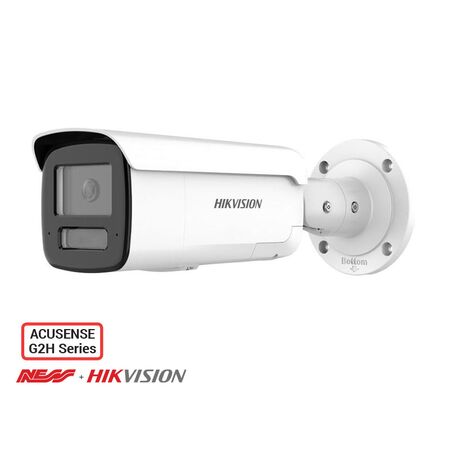

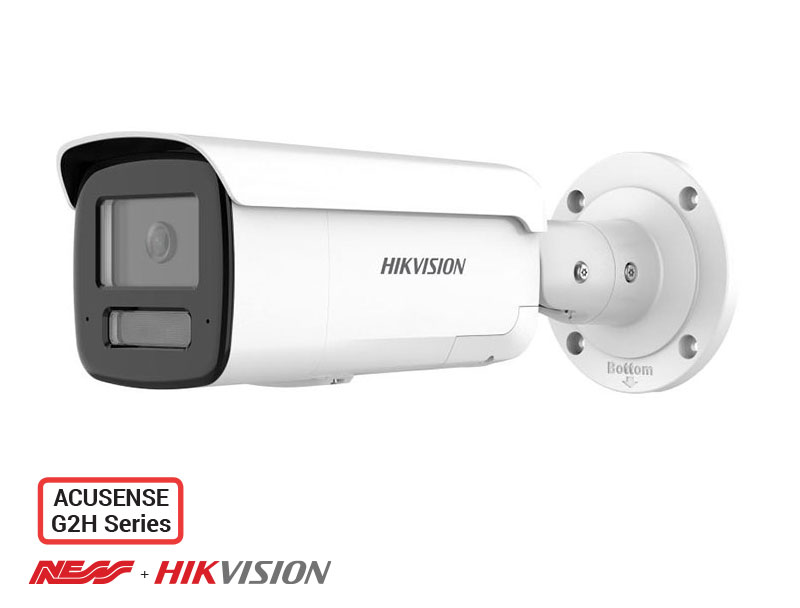

Liveguard Bullet Camera 8MP 4mm Hikvision
Hikvision Liveguard bullet camera features 8MP resolution and a 4mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision LiveGuard Bullet Camera, Hikvision 8MP ColorVu Bullet Camera, Hikvision 180° Panoramic CCTV Camera
Technical Specifications
- Model: DS-2CD2T87G2P-LSU/SL (4mm)
- Resolution: 8MP, 5120 × 1440 pixels
- Image Sensor: 2 × 1/1.8-inch progressive-scan CMOS
- Lens: Dual fixed 4mm lenses
- Horizontal Field of View: 180°
- Vertical Field of View: 44°
- Aperture: F1.0
- Minimum Illumination: 0.0005 lux in colour mode; 0 lux with supplemental light
- Supplemental Light: White light, up to 40m
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Wide Dynamic Range: 130dB WDR
- Power: 12VDC or IEEE 802.3af PoE
- Maximum Power Consumption: 10.5W via DC; 12.5W via PoE
- Ingress Protection: IP67
- Alarm Interfaces: 1 alarm input and 1 alarm output
- Audio: Built-in microphone and speaker with audible warning
- Operating Temperature: -30°C to 60°C
- Material: Metal front cover, body and mounting bracket
- EMC Approval: RCM, AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 118.6mm x 305.4mm x 105.1mm
- Weight: 1.42 kg
Key Features
- 8MP panoramic imaging with dual 4mm lenses
- 180° horizontal coverage for wide-area surveillance
- 24/7 colour imaging using Hikvision ColorVu technology
- Human and vehicle classification through deep learning
- Active deterrence with flashing white light and audible alarm
- 130dB WDR for high-contrast lighting conditions
- H.265+ compression for reduced storage and bandwidth requirements
- PoE connectivity for combined data and power over Ethernet
- IP67-rated enclosure for outdoor installations
- Line crossing, intrusion, region entrance and region exiting detection
Professional Installation Requirements
- Installation should be performed by a qualified security or structured-cabling technician. Configure the camera, PoE network, recording system and alarm functions in accordance with the manufacturer's instructions and applicable CCTV, electrical and cabling requirements.
Applications
- Outdoor commercial CCTV installations
- Building entrances and perimeters
- Retail, warehouse and industrial site surveillance
- Wide-area coverage of car parks, driveways and loading areas
- Security systems requiring audible and visual active deterrence
- IP CCTV systems using PoE network infrastructure
Standards & Compliance
- RCM EMC compliance: AS/NZS CISPR 32:2015
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
Environmental Benefits
- RoHS compliance restricts the use of specified hazardous substances in the product
- WEEE compliance supports responsible end-of-life electrical and electronic equipment handling
- PoE connectivity combines power and data over one Ethernet cable, potentially reducing installation cabling
- Metal construction and IP67 protection can support a longer service life and reduce replacement waste
Warranty Information
Hikvision standard warranty information identifies a 36-month warranty period for network camera categories, subject to the applicable regional terms, authorised supply channel and serial-number eligibility.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
