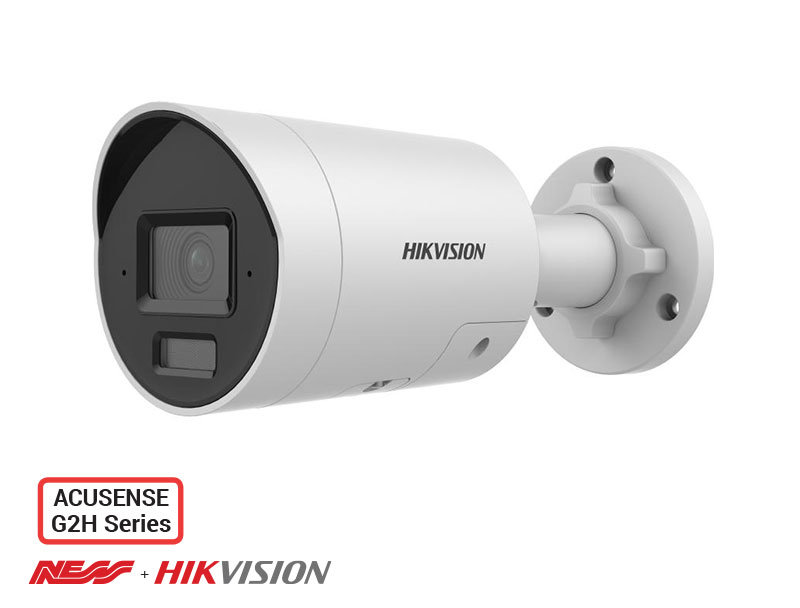

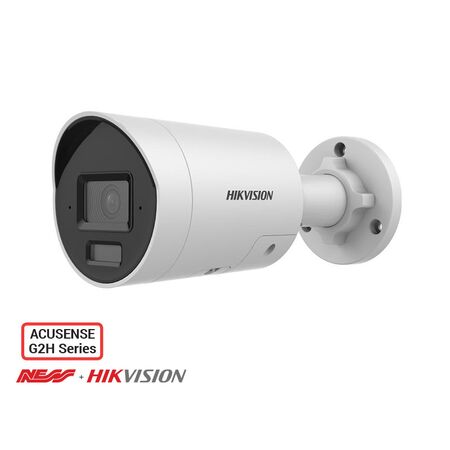

Liveguard Mini Bullet Camera 6MP 2.8mm Hikvision
Hikvision Liveguard mini bullet camera features 6MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2066G2H-I2U/SL, AcuSense Live Guard Mini Bullet Camera, 6MP Active Deterrence IP Camera
Technical Specifications
- Model: DS-2CD2066G2H-I2U/SL
- Image Sensor: 1/2.4 inch progressive scan CMOS
- Maximum Resolution: 3200 × 1800 pixels
- Lens: Fixed 2.8 mm focal length, F1.0 aperture
- Field of View: 115° horizontal, 60° vertical, 144° diagonal
- Low-Light Performance: 0.001 lux colour; 0 lux with IR illumination
- Infrared Range: Up to 40 m
- Dynamic Range: 120 dB WDR
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Smart Detection: AcuSense human and vehicle classification
- Active Deterrence: Integrated strobe light and audible alarm
- Audio: Built-in microphone, speaker and two-way audio
- Storage: MicroSD card support up to 512 GB
- Network Interface: Ethernet with PoE+ support
- Power: 12 VDC or IEEE 802.3at PoE+
- Ingress Protection: IP67
- Housing Material: Metal
- Dimensions (H x L x W): 74.4mm x 176.3mm x 74.4mm
- Weight: 0.505 kg
Key Features
- 6MP high-resolution network video
- Compact mini bullet form factor for indoor and outdoor security installations
- 2.8 mm wide-angle lens for broad scene coverage
- AcuSense classification of people and vehicles to help reduce false alarms
- Built-in strobe light and audible warning for active intrusion deterrence
- Powered-by-DarkFighter low-light imaging technology
- Up to 40 m infrared night vision
- 120 dB wide dynamic range for high-contrast scenes
- Built-in two-way audio capability
- Supports onboard recording via microSD card
- IP67 water and dust resistance
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications technician. Configure the camera, PoE/network equipment, recording system and detection zones in accordance with the manufacturer's instructions and applicable electrical and CCTV installation requirements.
Applications
- Residential security surveillance
- Commercial and retail premises monitoring
- Warehouses, workshops and industrial sites
- Perimeter and entry-point monitoring
- People and vehicle detection at access areas
- Outdoor CCTV systems requiring active audio and strobe deterrence
Standards & Compliance
- Applicable to CCTV systems designed, installed and commissioned in accordance with AS/NZS 62676.1.1:2020 for general video surveillance system requirements
- Camera image performance may be assessed within systems referencing AS/NZS 62676.5:2020
- PoE and low-voltage electrical installation practices should comply with applicable Australian electrical requirements, including AS/NZS 3000 where relevant
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- PoE+ operation allows power and data to be delivered over a single network cable, reducing installation materials
- IP67-rated metal construction supports longer service life in suitable outdoor environments and can reduce premature replacement waste
- MicroSD recording and network operation can reduce the need for additional local recording hardware in smaller installations
Warranty Information
Australian distributor listings specify a 3-year back-to-base manufacturer warranty for this Hikvision camera range; confirm warranty eligibility and conditions with the authorised reseller at purchase.
Available Now
Available through Hikvision and authorised Australian security and communications distributors.
