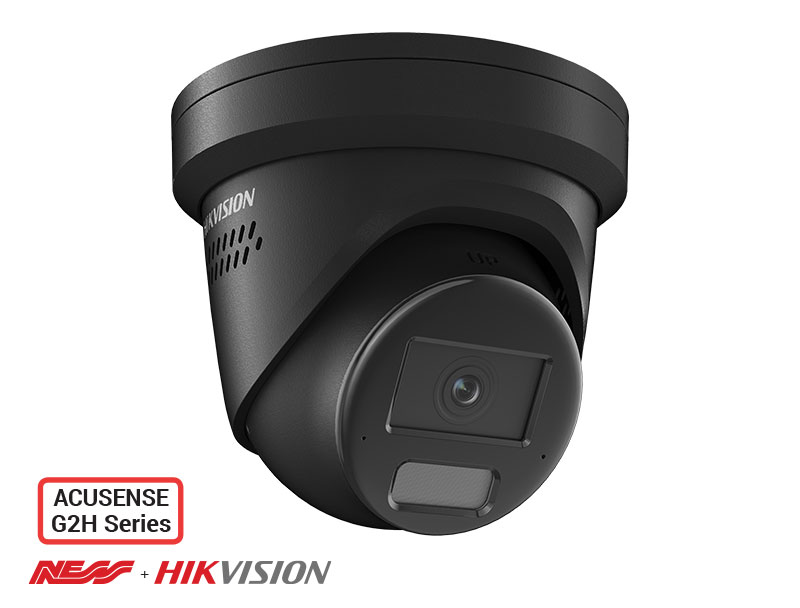

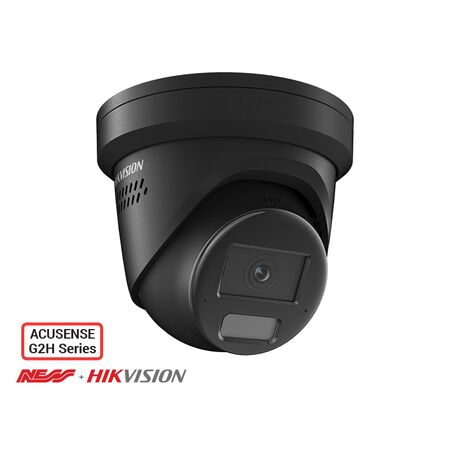

Liveguard Turret Camera 6MP 2.8mm Black Hikvision
Hikvision Liveguard turret camera features 6MP resolution, a 2.8mm lens and a black finish. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP Liveguard Turret Camera, Hikvision AcuSense Active Deterrence Turret Camera, DS-2CD2366G2-ISU/SL
Technical Specifications
- Model: DS-2CD2366G2-ISU/SL
- Resolution: 6MP, 3200 x 1800 pixels
- Image Sensor: 1/2.4 inch progressive scan CMOS
- Lens: Fixed 2.8mm lens, F1.6 aperture
- Field of View: 105° horizontal, 55° vertical, 127° diagonal
- Low-Light Performance: Colour 0.003 lux at F1.6; 0 lux with IR
- Infrared Range: Up to 30m
- Wide Dynamic Range: 120dB true WDR
- Video Compression: H.265+, H.265, H.264+, H.264
- Intelligent Detection: Human and vehicle classification with AcuSense deep learning
- Active Deterrence: White strobe light and audible warning
- Audio: Built-in microphone, speaker and two-way audio
- Network Interface: Ethernet with PoE support, IEEE 802.3af Class 3
- Power Supply: 12V DC or PoE
- Ingress Protection: IP67
- Housing Material: Predominantly metal
- Dimensions (H x L x W): 112.1mm x 138.3mm x 138.3mm
- Weight: 0.82 kg
Key Features
- 6MP high-definition surveillance imaging
- 2.8mm wide-angle lens for broad scene coverage
- AcuSense human and vehicle classification
- Active strobe light and audible warning to deter intruders
- Built-in microphone and speaker for two-way audio
- 120dB true WDR for high-contrast lighting conditions
- Up to 30m infrared night vision
- H.265+ compression for reduced storage and bandwidth requirements
- IP67 weather and dust resistance
- Supports local storage and network video recording applications
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security technician. Any mains-powered equipment, network infrastructure and cabling should be installed in accordance with applicable Australian electrical and communications requirements.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Warehouses, workshops and industrial premises
- Perimeter monitoring and access-point surveillance
- Active-deterrence security installations
- IP camera systems using PoE and compatible network video recorders
Standards & Compliance
- RCM EMC approval to AS/NZS CISPR 32:2015
- Applicable CCTV system standard: AS/NZS 62676.1.1:2020
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- PoE operation can simplify cabling and reduce the need for separate power infrastructure
- RoHS and REACH-related material controls support restricted-substance management
- Durable metal construction and IP67 protection can extend service life and reduce replacement waste
Warranty Information
Typically supplied with a 3-year Australian manufacturer warranty when purchased through an authorised Hikvision distributor; confirm warranty terms with the supplying distributor. Hikvision premium project-oriented product lines may have different extended warranty coverage.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
