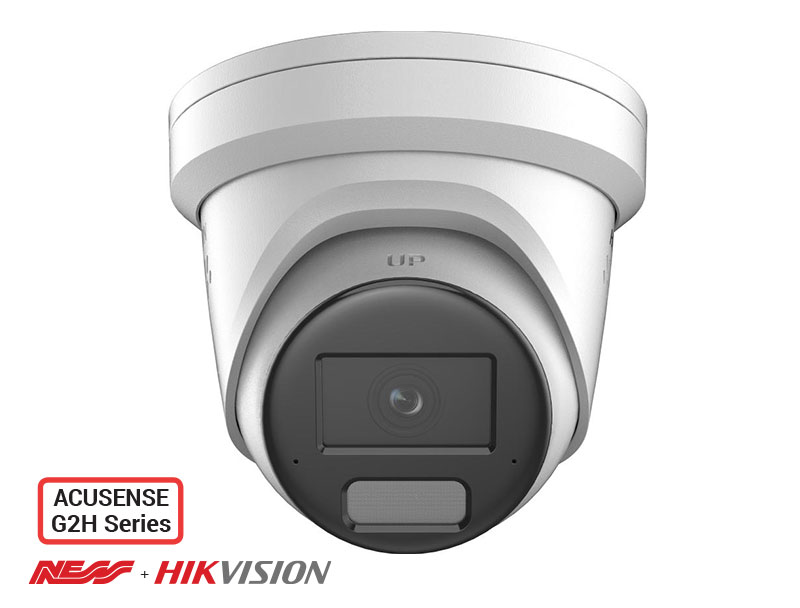

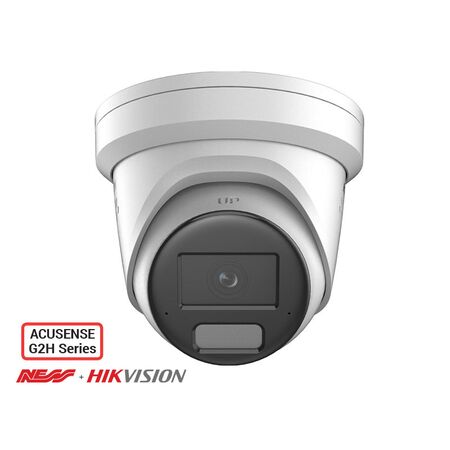

Liveguard Turret Camera 6MP 2.8mm DS-2CD2366G2H-IS2U/SL Hikvision
Hikvision Liveguard turret camera features 6MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2366G2H-IS2U/SL, 6MP Active Deterrence Turret Camera, AcuSense Turret IP Camera
Technical Specifications
- Image Resolution: 6MP, 3200 × 1800 pixels
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Lens: Fixed 2.8mm focal length, M12 mount
- Field of View: Horizontal 115°, vertical 60°, diagonal 144°
- Aperture: F1.0 fixed iris
- Minimum Illumination: 0.001 lux colour; 0 lux black and white with IR
- Wide Dynamic Range: 120dB true WDR
- Infrared Range: Up to 30m, 850nm IR
- Video Frame Rate: Up to 25fps at 50Hz or 30fps at 60Hz
- Video Compression: H.265, H.264, H.264+, H.265+ and MJPEG
- Video Bit Rate: 32Kbps to 16Mbps
- Audio: Built-in two-way audio with microphone and speaker interfaces
- Active Deterrence: White strobe light and audible warning
- Storage: MicroSD card support up to 512GB
- Network Interface: 10/100Mbps Ethernet with PoE
- Power Input: 12VDC ±25%, maximum 16W, or PoE IEEE 802.3at Class 4, maximum 18W
- Housing Material: Metal cover and metal main body
- Ingress Protection: IP67
- Operating Temperature: -30°C to 60°C
- Net Weight: Approximately 0.78kg
- Dimensions (H x L x W): 115.4mm x 138.3mm x 138.3mm
- Weight: 0.78 kg
Key Features
- 6MP resolution for detailed surveillance imagery
- 2.8mm wide-angle lens suited to broad-area coverage
- AcuSense deep-learning classification for human and vehicle targets
- 120dB true WDR for scenes with strong backlighting
- Smart IR illumination with up to 30m range
- Active deterrence using white strobe light and audible warning
- Built-in two-way audio capability
- H.265+ compression to reduce storage and bandwidth requirements
- MicroSD recording support up to 512GB
- IP67-rated metal housing for indoor or outdoor installations
Professional Installation Requirements
- Installation should be performed by a competent CCTV or security technician, including network configuration, weatherproofing and system commissioning. Any 230V mains electrical work associated with the power supply must be completed by a licensed electrician.
Applications
- Commercial CCTV and security systems
- Residential perimeter and entry monitoring
- Retail, warehouse and industrial surveillance
- Car parks, building entrances and loading areas
- Outdoor areas requiring active strobe and audible deterrence
- Human and vehicle classification applications
Standards & Compliance
- RCM EMC reference: AS/NZS CISPR 32:2015
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020; verify complete project compliance with the system designer or installer
- Electrical equipment safety should be assessed against applicable Australian requirements, including AS/NZS 3820 where relevant
Environmental Benefits
- H.265+ compression can reduce network bandwidth and video storage requirements compared with older compression formats
- RoHS and WEEE environmental compliance are specified in the manufacturer documentation
- Metal housing supports product durability and may be recyclable at end of service life
- PoE operation can simplify cabling by combining network data and power through one Ethernet connection
- IP67 protection helps reduce premature replacement in suitable outdoor environments
Warranty Information
Hikvision Australia warranty and RMA terms apply through authorised distribution channels. The published Hikvision Oceania five-year premium warranty list does not specifically identify this standard AcuSense turret series, so confirm the applicable warranty period with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distribution channels.
