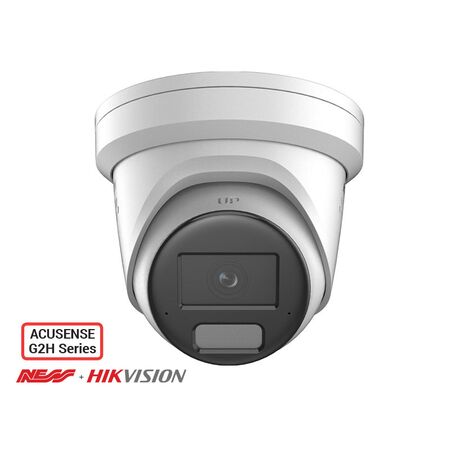

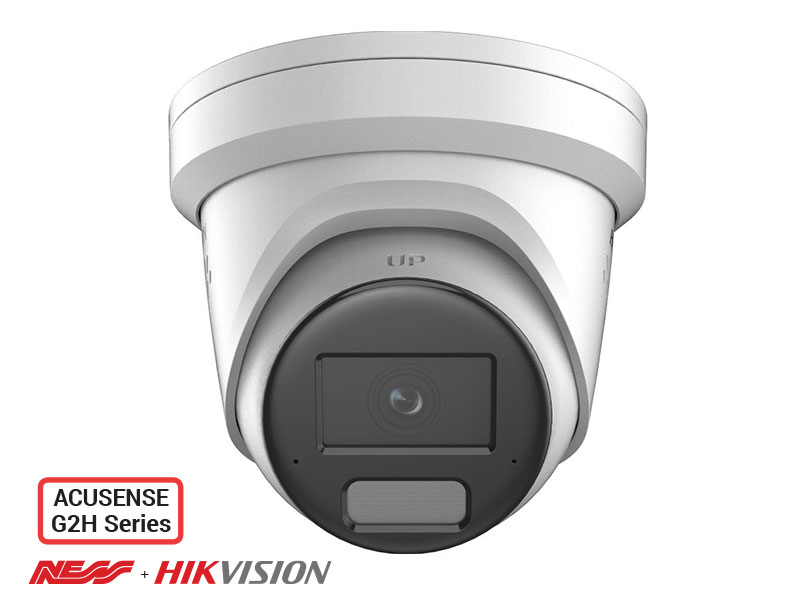

Liveguard Turret Camera 6MP 4mm Hikvision
Hikvision Liveguard turret camera features 6MP resolution and a 4mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AcuSense Live Guard Turret Camera, 6MP Strobe Light and Audible Warning Turret Network Camera
Technical Specifications
- Model: DS-2CD2366G2-ISU/SL
- Image Resolution: 6MP, 3200 × 1800
- Lens: 4mm fixed lens
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Low-Light Technology: Powered by DarkFighter
- Wide Dynamic Range: 120dB true WDR
- Video Compression: H.265+, H.265, H.264+, H.264
- Night Illumination: Up to 30m IR range
- Detection: AcuSense human and vehicle target classification
- Deterrence: Active strobe light and audible alarm
- Audio: Built-in microphone and speaker with two-way audio
- Storage: MicroSD, SDHC and SDXC card support up to 256GB
- Network Interface: 1 × RJ45 10/100M Ethernet
- Power: 12VDC or PoE IEEE 802.3af Class 3
- Maximum Power Consumption: 8.4W DC or 9.7W via PoE
- Ingress Protection: IP67
- Housing Material: Metal, excluding trim ring
- Operating Temperature: -30°C to 60°C
- Australian EMC Compliance: RCM, AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 112.1mm x 138.3mm x 138.3mm
- Weight: 0.82 kg
Key Features
- 6MP high-definition imaging for CCTV and security surveillance
- 4mm fixed lens suited to general-purpose monitoring applications
- AcuSense classification helps distinguish people and vehicles from other motion
- Liveguard strobe light and audible warning help deter intruders
- Built-in microphone and speaker support two-way audio communication
- Powered by DarkFighter technology for improved low-light performance
- 120dB true WDR improves image clarity in high-contrast scenes
- H.265+ compression reduces bandwidth and storage requirements
- IP67-rated housing for outdoor installation
- Supports 12VDC or single-cable PoE installation
Professional Installation Requirements
- Installation should be performed by a qualified security or structured-cabling installer. Configure the camera, network, recording equipment and any audible or visual deterrence functions in accordance with the manufacturer's instructions and applicable CCTV installation requirements.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Office and warehouse monitoring
- Entry, driveway and perimeter surveillance
- Outdoor security installations requiring active deterrence
- IP camera systems using Hikvision NVRs or compatible VMS platforms
Standards & Compliance
- RCM marking to AS/NZS CISPR 32:2015 as specified by the manufacturer
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
- Applicable camera image-quality and data specifications: AS/NZS 62676.5:2020
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording storage requirements compared with older codecs
- PoE operation enables power and data transmission over a single network cable, reducing cabling material
- Metal housing supports product durability and extended service life
- Manufacturer documentation identifies CE RoHS and WEEE environmental compliance
- Long service life can reduce replacement frequency and associated electronic waste
Warranty Information
Hikvision Australia warranty periods vary by product and contract; Australian distributors commonly specify a 3-year warranty for Hikvision network cameras. Confirm coverage with the authorised Australian distributor and retain proof of purchase.
Available Now
Available through Hikvision and authorised Australian security distributors, subject to distributor stock and regional model availability.
