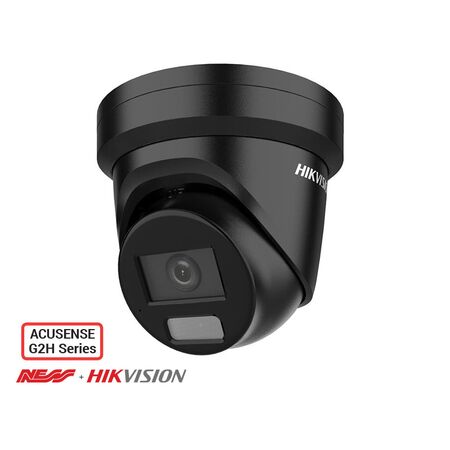

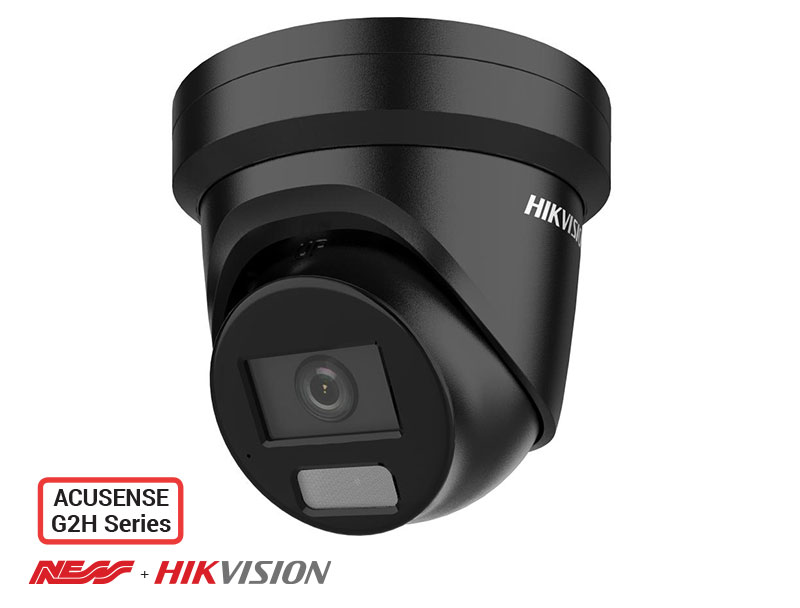

Liveguard Turret Camera 8MP 2.8mm Black Hikvision
Hikvision Liveguard turret camera features 8MP resolution, a 2.8mm lens and a black finish. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP Live Guard Turret Camera, Hikvision ColorVu Turret Camera, Hikvision DS-2CD2387G2-LSU/SL
Technical Specifications
- Model: DS-2CD2387G2-LSU/SL
- Resolution: 3840 × 2160 pixels, 8MP
- Image Sensor: 1/1.2-inch progressive scan CMOS
- Lens: Fixed 2.8mm focal length
- Field of View: 102° horizontal, 52° vertical, 124° diagonal
- Aperture: F1.0
- Low-Light Performance: 0.0005 Lux at F1.0, AGC on; 0 Lux with white light
- Illumination: Smart white light up to 30m
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Wide Dynamic Range: 130dB WDR
- Analytics: Human and vehicle classification, intrusion, line crossing, region entrance and region exiting detection
- Audio: Built-in microphone and 1.5W speaker with two-way audio
- Deterrence: Active strobe light and audible warning
- Storage: MicroSD, microSDHC or microSDXC card up to 512GB
- Network Interface: 10/100M self-adaptive RJ45 Ethernet
- Power: 12V DC or PoE 802.3af, Class 3
- Protection Rating: IP67
- Housing: Metal cover and metal main body
- Manufacturer EMC Approval: RCM to AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 120.1mm x 138.3mm x 138.3mm
- Weight: 0.9 kg
Key Features
- 8MP 4K imaging for detailed CCTV footage
- Hikvision ColorVu technology for 24/7 colour imaging
- Wide 2.8mm lens suitable for broad-area coverage
- Built-in strobe light and audible warning for active deterrence
- Human and vehicle target classification to reduce nuisance alerts
- Built-in microphone and speaker for two-way communication
- 130dB WDR for scenes with strong backlighting
- Smart white-light illumination up to 30 metres
- PoE support for combined power and data over Ethernet
- IP67-rated protection for indoor or outdoor installations
- Supports local microSD recording up to 512GB
- ONVIF Profile S, G and T compatibility
Professional Installation Requirements
- Installation should be performed by a qualified security or electrical technician. PoE network cabling, mounting and any mains-powered equipment should be installed in accordance with applicable Australian electrical and structured-cabling requirements, including AS/NZS 3000 where relevant.
Applications
- Residential CCTV and perimeter security
- Commercial and retail premises monitoring
- Warehouses, workshops and industrial sites
- Entry points, driveways and car parks
- Outdoor areas requiring colour night imaging
- Security installations requiring audible and visual intruder deterrence
Standards & Compliance
- AS/NZS CISPR 32:2015 — manufacturer-listed RCM electromagnetic compatibility approval
- AS/NZS 62676.1.1:2020 — relevant Australian/New Zealand CCTV system requirements standard
- AS/NZS 62676.5:2020 — relevant data specifications and image-quality performance standard for camera devices
Environmental Benefits
- RoHS and WEEE environmental compliance declarations are listed by the manufacturer
- Smart white-light operation can provide illumination only when required, reducing unnecessary lighting use
- Metal housing and IP67 protection support a long service life and reduce replacement waste
- PoE combines power and data transmission through one network cable, reducing installation material requirements
Warranty Information
Generally covered by Hikvision's standard three-year manufacturer warranty when purchased through an authorised Australian distribution channel; warranty eligibility and terms should be confirmed against the supplier invoice and local Hikvision policy.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional model and stock availability.
