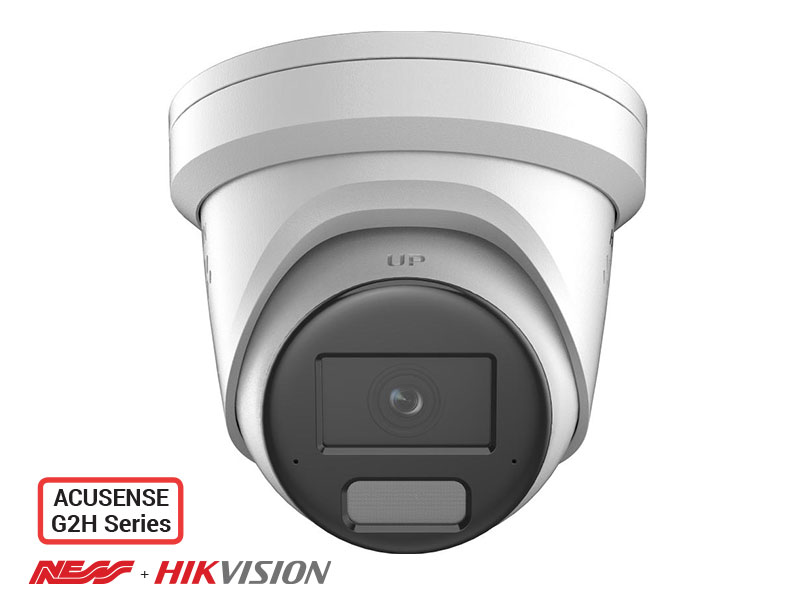

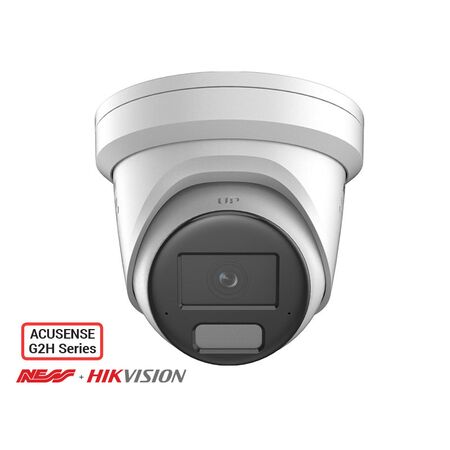

Liveguard Turret Camera 8MP 2.8mm Hikvision
Hikvision Liveguard turret camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision AcuSense Live Guard Turret Camera, 8MP 4K CCTV Turret Camera, Strobe and Audible Warning Turret Camera
Technical Specifications
- Resolution: 8MP, 3840 × 2160 maximum
- Lens: Fixed 2.8mm focal length
- Field of View: 111° horizontal, 59° vertical, 131° diagonal
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Low-Light Performance: 0.003 lux colour; 0 lux with IR
- Wide Dynamic Range: 120dB true WDR
- Night Vision: Infrared illumination up to 30m
- Compression: H.265, H.264, H.265+ and H.264+
- Audio: Built-in microphone, speaker and two-way audio
- Deterrence: Configurable strobe light and audible warning
- Detection: AcuSense human and vehicle target classification
- Storage: MicroSD, SDHC and SDXC support up to 512GB
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Power: 12V DC or PoE 802.3af Class 3; maximum 10W via PoE
- Ingress Protection: IP67
- Material: Metal housing with plastic trim ring
- EMC Approval: RCM to AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 124.5mm x 138.3mm x 138.3mm
- Weight: 0.84 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- 2.8mm wide-angle lens suited to entrances, driveways and general-area monitoring
- AcuSense analytics distinguish people and vehicles from other movement
- Live Guard deterrence with flashing strobe light and audible warning
- Built-in microphone and speaker support two-way audio
- 120dB true WDR helps retain detail in high-contrast scenes
- Powered-by-DarkFighter technology improves low-light performance
- Infrared night vision up to 30m
- IP67-rated housing for outdoor CCTV installations
- Supports H.265+ compression to reduce bandwidth and storage requirements
- Compatible with PoE network infrastructure and Hik-Connect remote management
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications installer. PoE or low-voltage connections must be installed, tested and commissioned in accordance with applicable Australian requirements, with the CCTV system designed and installed to the AS/NZS 62676 series where applicable.
Applications
- Residential security monitoring
- Commercial premises and retail surveillance
- Entrances, driveways and building perimeters
- Warehouses, workshops and industrial sites
- Small business and office CCTV systems
- Outdoor monitoring requiring active audible and visual deterrence
Standards & Compliance
- RCM approval to AS/NZS CISPR 32:2015 for electromagnetic compatibility, as stated in the manufacturer datasheet
- Applicable to video surveillance systems designed and installed in accordance with AS/NZS 62676.1.1:2020 and the AS/NZS 62676 series
Environmental Benefits
- H.265+ compression can reduce network bandwidth and storage requirements compared with less efficient codecs
- PoE operation allows power and data to be delivered through one Ethernet cable, reducing cabling materials
- Long-life metal housing and IP67 protection can reduce replacement frequency and product waste
- RoHS-related restricted-substance compliance is stated in manufacturer documentation for applicable variants
Warranty Information
Hikvision Australia’s standard RMA policy lists 36 months for 2 Series IP cameras. Warranty support is subject to purchase through an authorised Australian channel and the applicable regional terms.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
