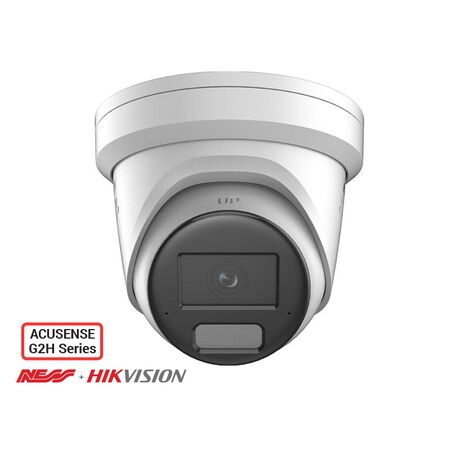

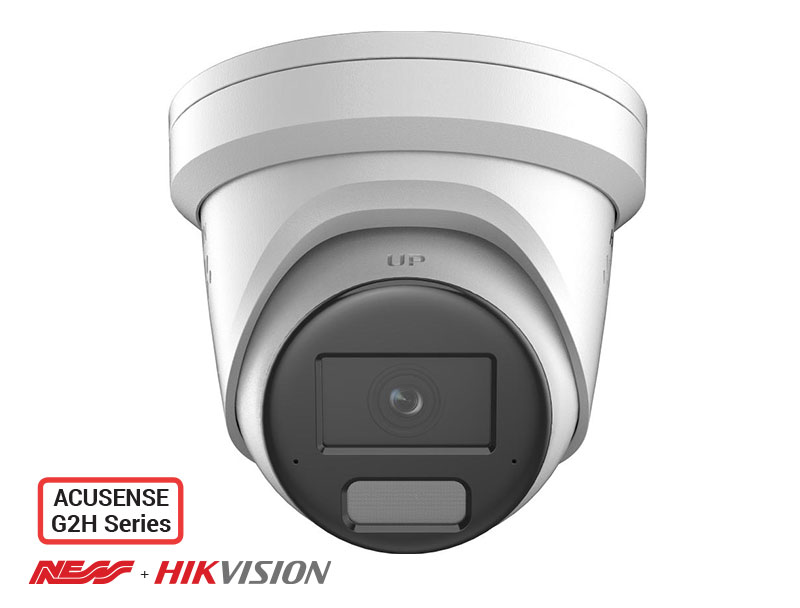

Liveguard Turret Camera 8MP 4mm Hikvision
Hikvision Liveguard turret camera features 8MP resolution and a 4mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP LiveGuard Turret Camera, Hikvision AcuSense Strobe Turret Camera, 8MP 4K IP Turret Camera
Technical Specifications
- Model: DS-2CD2386G2H-IS2U/SL (4mm)
- Resolution: 8MP, 3840 × 2160 pixels
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Fixed 4mm lens
- Field of View: Horizontal 90°, vertical 47°, diagonal 111°
- Minimum Illumination: 0.0008 lux in colour; 0 lux with IR
- Wide Dynamic Range: 120dB WDR
- Night Vision: Smart IR up to 30m
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Frame Rate: Up to 25fps at 3840 × 2160 in 50Hz mode
- Audio: Built-in microphone, speaker and two-way audio
- Deterrence: White-light strobe and audible warning
- Analytics: AcuSense human and vehicle classification, intrusion and line-crossing detection
- Network: 10/100 Mbps Ethernet with ONVIF and PoE
- Power: 12V DC or IEEE 802.3at PoE, maximum 18W via PoE
- Ingress Protection: IP67
- Operating Temperature: -30°C to 60°C
- Compliance Markings: RCM AS/NZS CISPR 32:2015, CE-RoHS and REACH
- Dimensions (H x L x W): 115.4mm x 138.3mm x 138.3mm
- Weight: 0.78 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- Fixed 4mm lens suited to longer-range or narrower-area monitoring
- AcuSense deep-learning analytics for human and vehicle target classification
- 120dB WDR for scenes with strong backlighting
- Smart IR night vision up to 30m
- Built-in microphone, speaker and two-way audio
- White-light strobe and audible warning for active deterrence
- H.265+ compression reduces bandwidth and recording-storage requirements
- IP67-rated metal housing for indoor and outdoor installations
- PoE support simplifies network and power connection
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Configure the camera, network, PoE or 12V DC supply, recording equipment and privacy settings in accordance with manufacturer instructions and applicable Australian requirements.
Applications
- Residential CCTV and perimeter monitoring
- Commercial premises and office security
- Retail, warehouse and industrial surveillance
- Building entrances, driveways and car parks
- Intrusion detection with visual and audible deterrence
- Indoor and outdoor IP security camera systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- AS/NZS CISPR 32:2015 EMC compliance listed by the manufacturer
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage demand compared with less efficient codecs
- RoHS and REACH environmental compliance declarations support restricted-substance management
- Metal construction can support a longer service life and reduce replacement waste
- IP67 protection helps maintain serviceability in exposed installations, reducing premature equipment replacement
Warranty Information
Three-year limited warranty is listed for the DS-2CD2386G2H-IS2U/SL 4mm model by Hikvision distribution listings. Warranty eligibility may depend on purchase through an authorised Australian channel. ([adiglobal.ie](https://www.adiglobal.ie/Product/311327144?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security, CCTV and electronic-security distributors. Confirm current stock and regional model suffix before ordering. ([ness.com.au](https://ness.com.au/ip-cameras-8mp))
