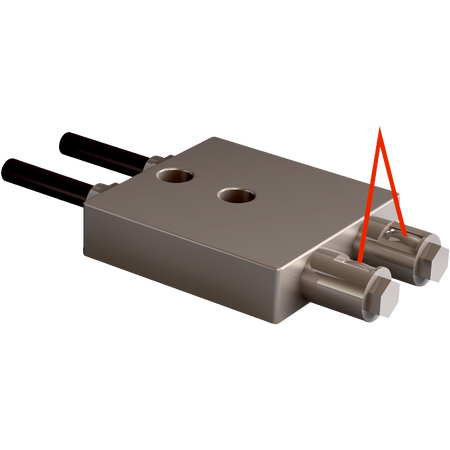

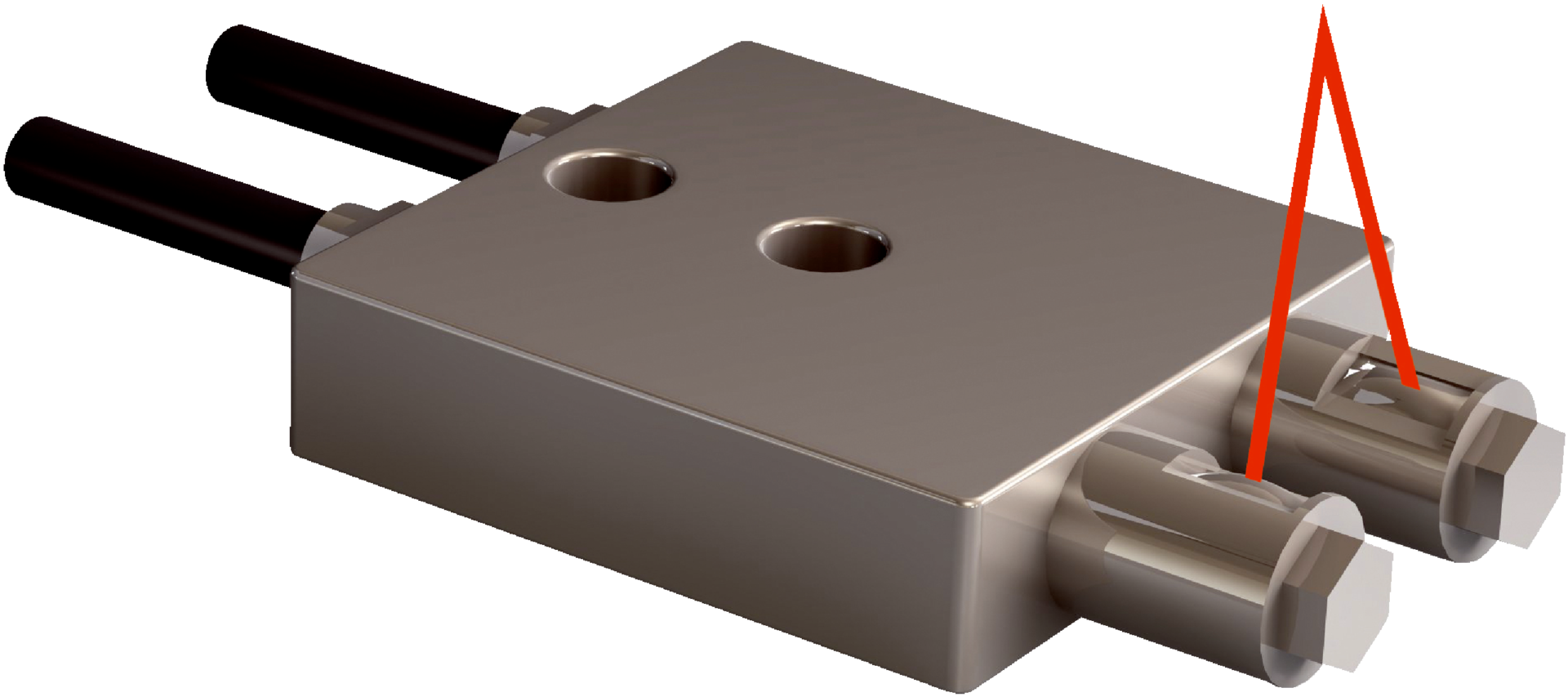

LL3-DH08 | Fiber-optic sensors
The SICK LL3-DH08 fiber-optic sensor is designed for precise proximity detection in LCD, clear material, and semiconductor applications, featuring a flat fiber-optic head and compatibility with multiple amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-DH08 | Fiber-optic sensors
Brand: SICK
SKU: 5326025
Alternatively Known As: Fiber optic sensor LL3-DH08, SICK fiber optic proximity sensor, LL3-DH08 optical sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type
- Sensing range max.: 75 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Compatibility with infrared light: Yes
- Optical fiber cable can be shortened: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 1.5 mm single fiber
- Sheath material: Perfluoralkoxy-Polymere (PFA)
- Fiber material: Silicium (Si)
- Ambient operating temperature: -60 °C to +180 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cables with flat type fiber-optic head design
- Proximity system functional principle
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range up to 75 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.02 mm
- Optical fiber cable can be shortened without adapter end sleeves
- Optical fiber head made of stainless steel with axial light emission
- Fiber length of 2000 mm with 25 mm bending radius
- Sheath made of Perfluoralkoxy-Polymere (PFA) and fibers made of Silicium (Si)
- Operating temperature range from -60 °C to +180 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- LCD manufacturing
- Clear material detection
- Semiconductor industry
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise detection reducing material waste in manufacturing processes
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DH08 Fiber-optic Sensor is available for immediate purchase, ideal for precision detection in industrial manufacturing environments.
