LL3-DK06-01 | Fiber-optic sensors

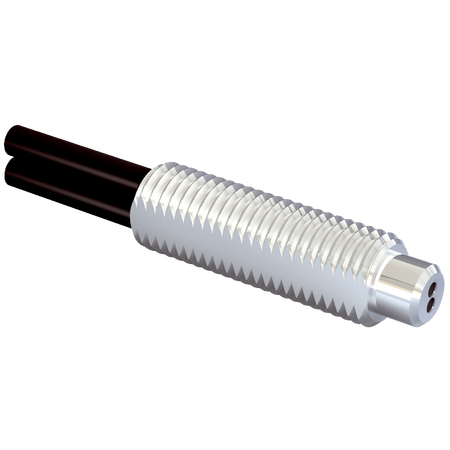

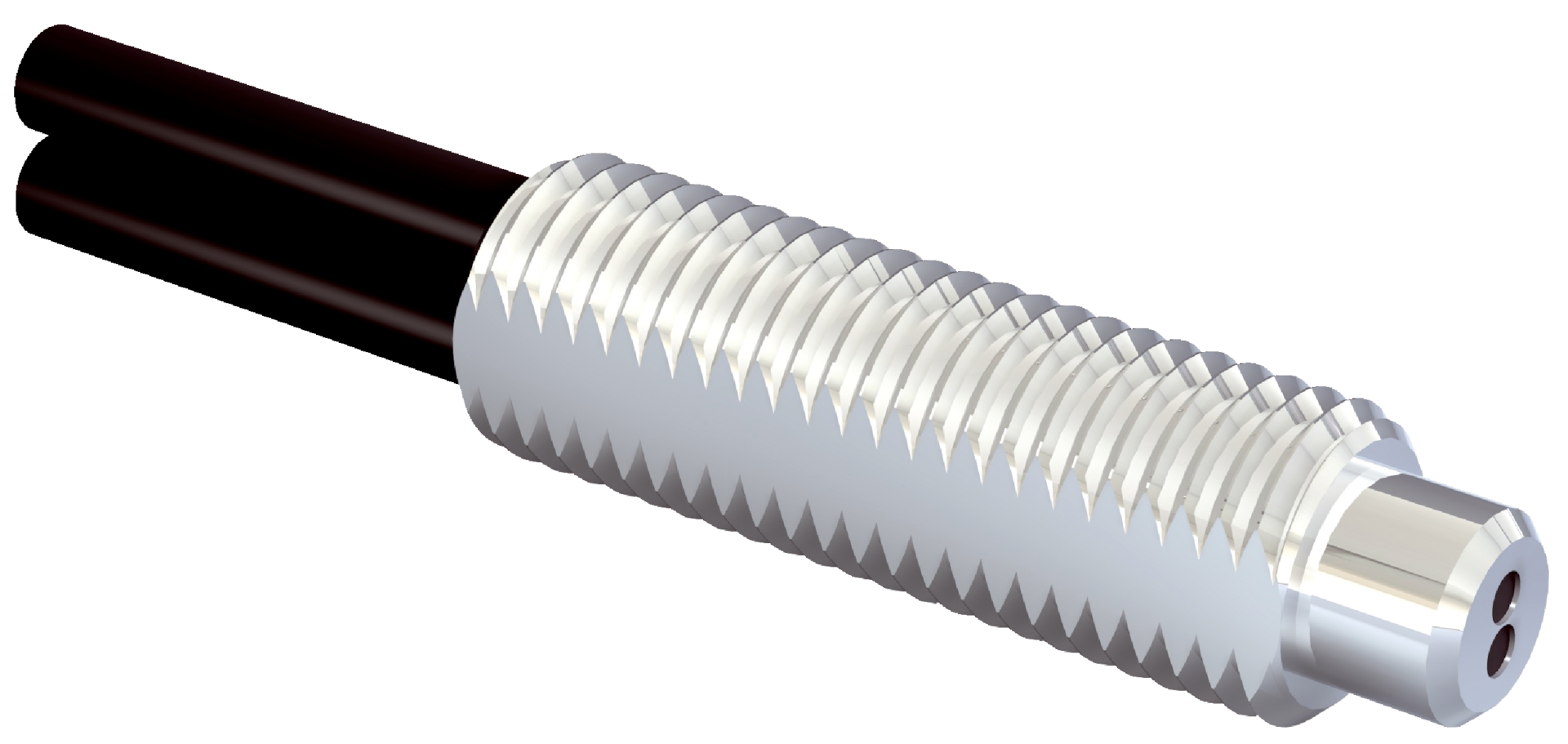

The SICK LL3-DK06-01 fiber-optic sensor features a threaded sleeve design and proximity system principle, compatible with multiple fiber-optic amplifiers for precise sensing in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-DK06-01 | Fiber-optic sensors
Brand: SICK
SKU: 5326997
Alternatively Known As: Fiber optic sensor LL3-DK06-01, SICK fiber optic cable sensor, Proximity fiber optic sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Sensing range max.: Depending on fiber optic amplifier used
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 1000 mm
- Bending radius: 25 mm
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm
- Material: Stainless steel (head), Polyethylene (sheath), Polymethylmethacrylat (fibers)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 1000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Proximity system functional principle
- Angle of dispersion 60°
- Axial light emission
- Optical fiber cable can be shortened
- Stainless steel optical fiber head
- Includes mounting accessories and FC fiber cutter
Professional Installation Requirements
- Installation by trained personnel recommended to ensure proper connection with compatible fiber-optic amplifiers and secure mounting.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long product life reducing waste
- Low power consumption due to fiber-optic sensing technology
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DK06-01 Fiber-optic Sensor is available for immediate purchase, ideal for industrial proximity sensing applications requiring high precision and durability.
