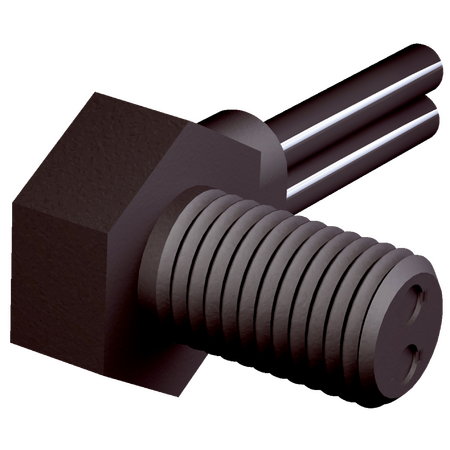

LL3-DV05 | Fiber-optic sensors

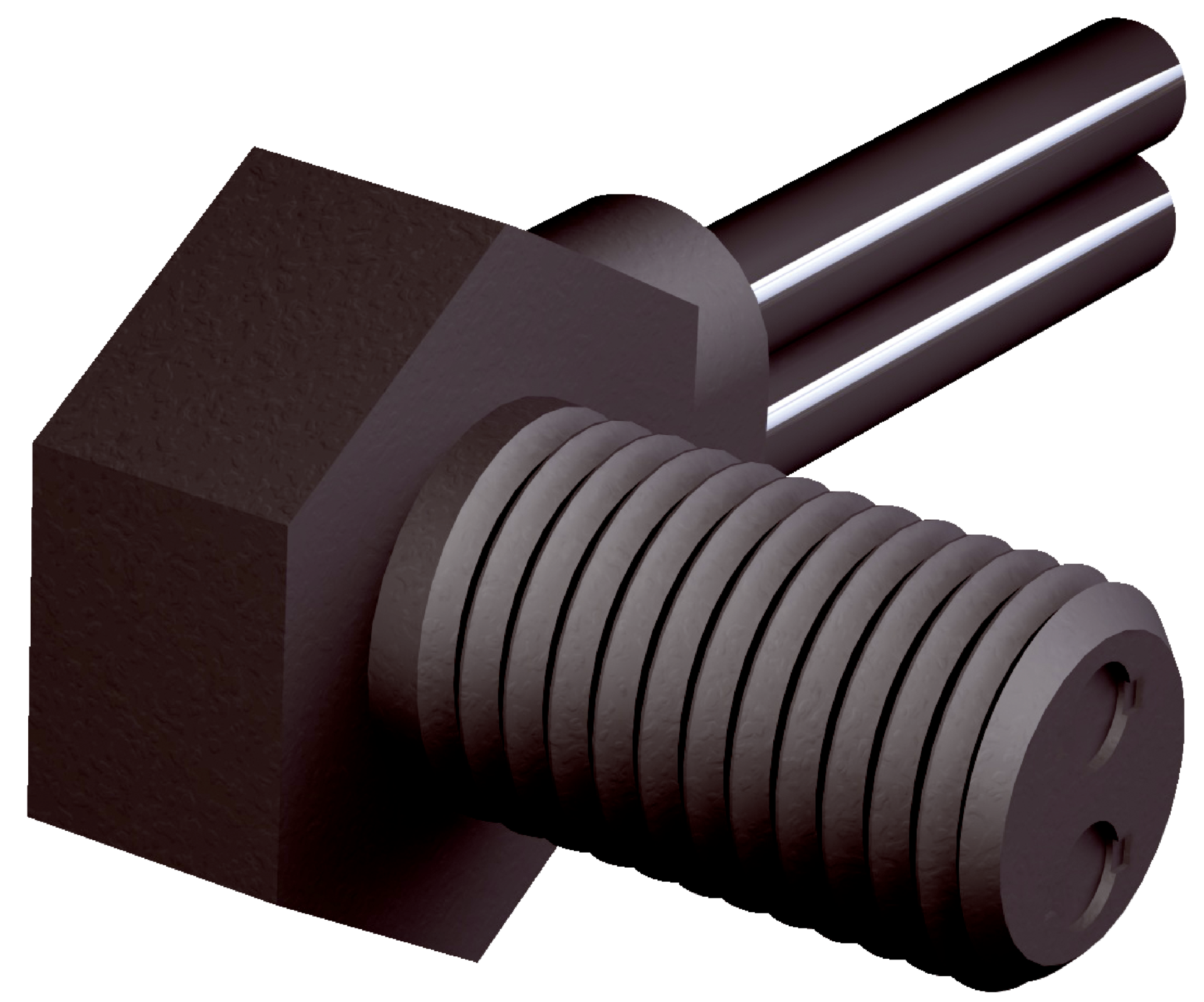

The SICK LL3-DV05 fiber-optic sensor features a threaded sleeve with 90° deflection, suitable for standard proximity sensing with a maximum range of 700 mm and compatibility with multiple fiber-optic amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-DV05 | Fiber-optic sensors
Brand: SICK
SKU: 5322549
Alternatively Known As: Fiber optic proximity sensor, SICK fiber optic sensor LL3-DV05, threaded sleeve fiber optic sensor, 90 degree deflection fiber optic sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 700 mm (with WLL80 at 8 ms operating mode)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 16°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Polyamide (PA)
- Light emission: Radial
- Thread diameter (housing): M6
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 30mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cables with proximity system functional principle
- Threaded sleeve fiber-optic head with 90° deflection
- Maximum sensing range up to 700 mm depending on amplifier and operating mode
- Minimal object diameter detection of 0.015 mm
- Integrated lens with 16° angle of dispersion
- Radial light emission from polyamide (PA) optical fiber head
- Optical fiber cable length 2000 mm with 2.2 mm outside diameter
- Fiber cable can be shortened without adapter end sleeves
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers to ensure optimal performance and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life and reducing waste
- Low power consumption compatible with energy-efficient systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK LL3-DV05 fiber-optic sensor is available for immediate purchase, ideal for industrial proximity sensing applications requiring precise detection and robust fiber-optic technology.
