Trade Discount 20%

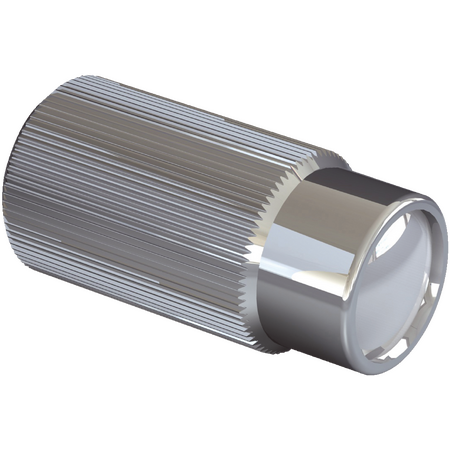

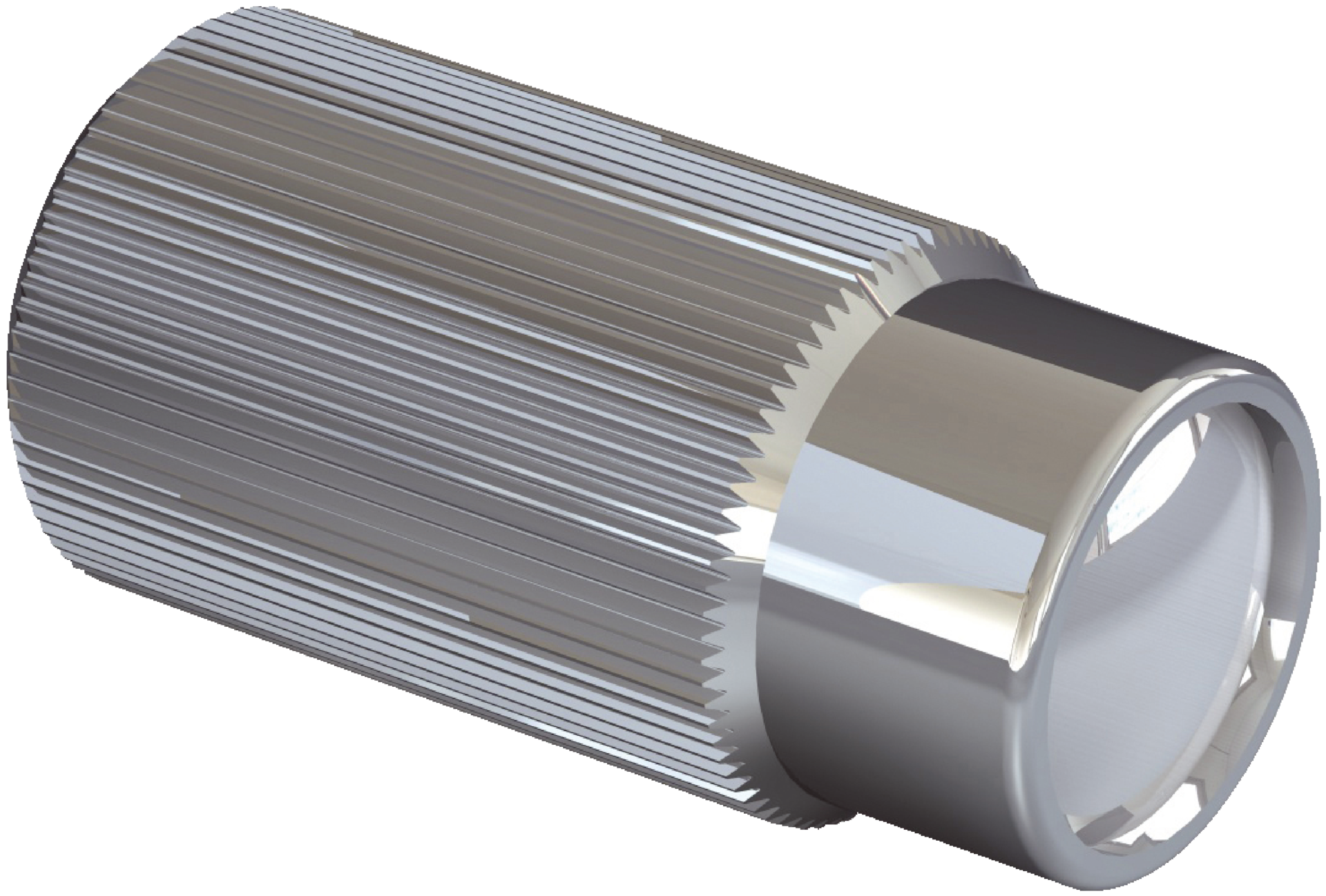

LL3-TA01 Lens Through-Beam | Brass & Glass Materials | 11° Dispersion Angle | by SICK
The LL3-TA01 Lens Through-Beam is designed for optical fiber cable systems, featuring a robust through-beam system with a sender and receiver. With an 11° angle of dispersion and high contamination resistance, it's perfect for industrial automation and sensing applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Optical Fiber Lens, Through-Beam Lens, Fiber Optic Attachment Lens
Technical Specifications
- Device type: Attachment lens for optical fiber cable
- Functional principle: Through-beam system with sender and receiver
- Angle of dispersion: 11°
- Sleeve material: Brass (Br)
- Lens material: Glass
- Thread diameter (housing): M2.6
- Weight: 3 g
- Ambient operating temperature: –40 °C to +100 °C
- Dimensions (H x L x W): 10mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Suitable for detection with high sensing range
- High robustness against contamination
- Angle of dispersion: 11°
- Attachment lens for optical fiber cable
- Sleeve material: Brass
- Lens material: Glass
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical fiber systems to ensure proper alignment and secure attachment.
Applications
- Optical fiber cable systems requiring through-beam detection
- Industrial automation and sensing applications
- Environments needing high sensing range and contamination robustness
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials such as brass and glass increase product lifespan, reducing waste
- High robustness against contamination reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-TA01 Lens Through-Beam 2 Pieces is available for immediate purchase, ideal for industrial and automation optical sensing applications.
