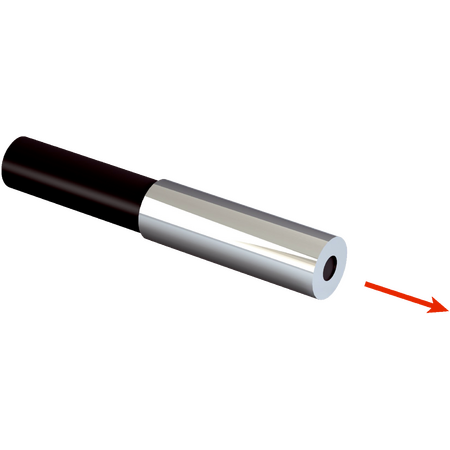

LL3-TB07 | Fiber-optic sensors
The SICK LL3-TB07 fiber-optic sensor features a through-beam system with a smooth sleeve fiber-optic head, offering precise detection with a maximum sensing range of 3,300 mm and compatibility with multiple fiber-optic amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-TB07 | Fiber-optic sensors
Brand: SICK
SKU: 5325919
Alternatively Known As: Fiber optic sensor LL3-TB07, SICK fiber optic cable sensor, Through-beam fiber optic sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver

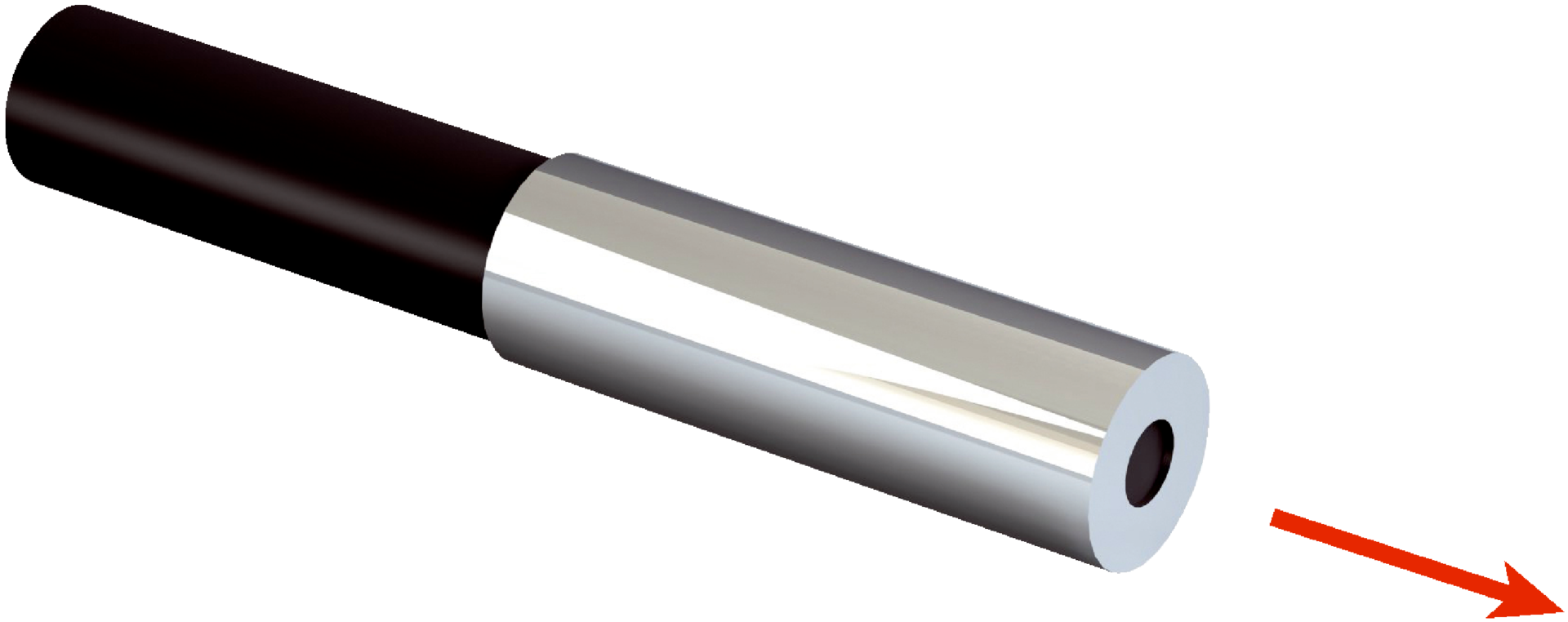

- Fiber-optic head design: Smooth sleeve
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 3,300 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.03 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 2.5 mm
- Optical fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.0 mm single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 5mm x 2000mm x 5mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Smooth sleeve fiber-optic head design
- Maximum sensing range up to 3,300 mm with WLL80 amplifier at 8 ms
- Minimal object diameter detection of 0.03 mm
- 60° angle of dispersion
- Axial light emission
- Fiber-optic cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards.
Applications
- Standard sensing applications requiring through-beam fiber-optic sensors
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption due to efficient fiber-optic technology
- Durable stainless steel and polyethylene materials enhance product longevity, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TB07 Fiber-optic Sensor is available for immediate purchase, ideal for industrial sensing and automation applications.
