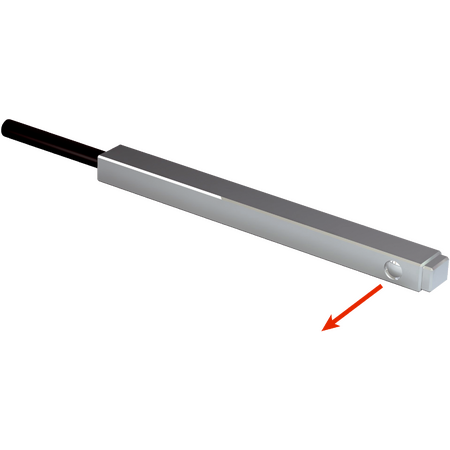

LL3-TG04 | Fiber-optic sensors
The SICK LL3-TG04 fiber-optic sensor features a 90° deflection head and through-beam sensing principle, ideal for precise detection in LCD, semiconductor, and clear material applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-TG04 | Fiber-optic sensors
Brand: SICK
SKU: 5324499
Alternatively Known As: Fiber optic sensor LL3-TG04, SICK fiber optic cable sensor, 90 degree fiber optic sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver

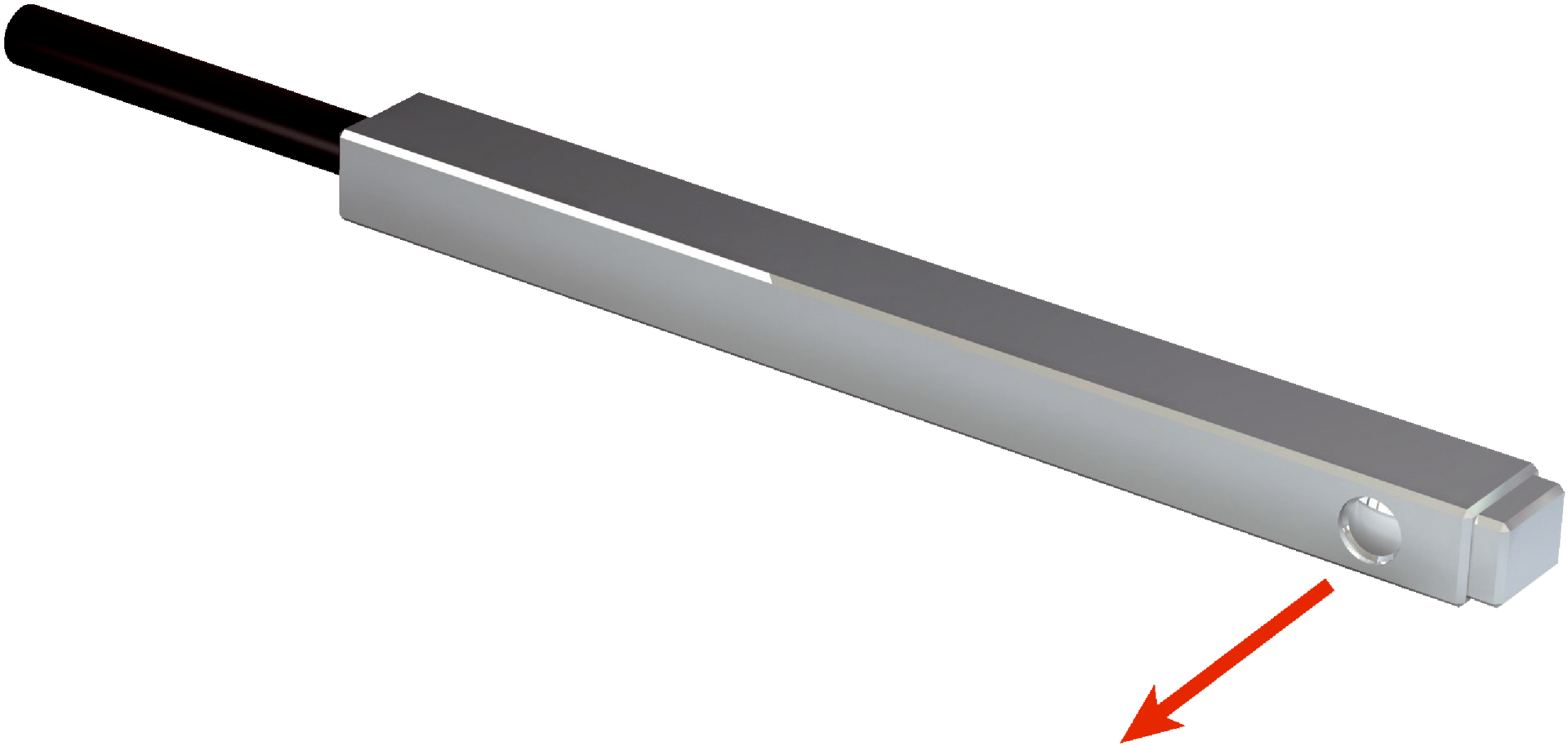

- Fiber-optic head design: 90° deflection
- Sensing range max: Up to 2,060 mm (depending on amplifier and operating mode)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 3°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Optical fiber compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Plastic
- Light emission: Radial
- Optical fiber length: 2,000 mm
- Bending radius: 1 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 0.5 mm single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- 90° deflection fiber-optic head design
- Maximum sensing range up to 2,060 mm depending on amplifier
- Minimal object diameter detection of 0.02 mm
- 3° angle of dispersion with integrated lens
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T)
- Optical fiber cable can be shortened
- Includes adapter sleeves and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and connection with compatible amplifiers.
Applications
- LCD manufacturing
- Clear material detection
- Semiconductor industry
- Static high-flexibility sensing applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending equipment life
- Energy-efficient operation with minimal power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TG04 fiber-optic sensor is available for immediate purchase, ideal for industrial sensing applications in electronics and semiconductor manufacturing.
