LL3-TR05 | Fiber-optic sensors

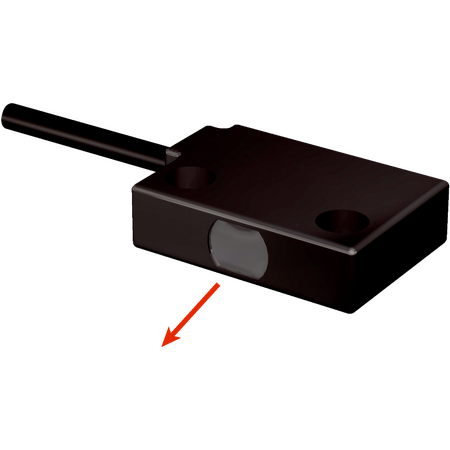

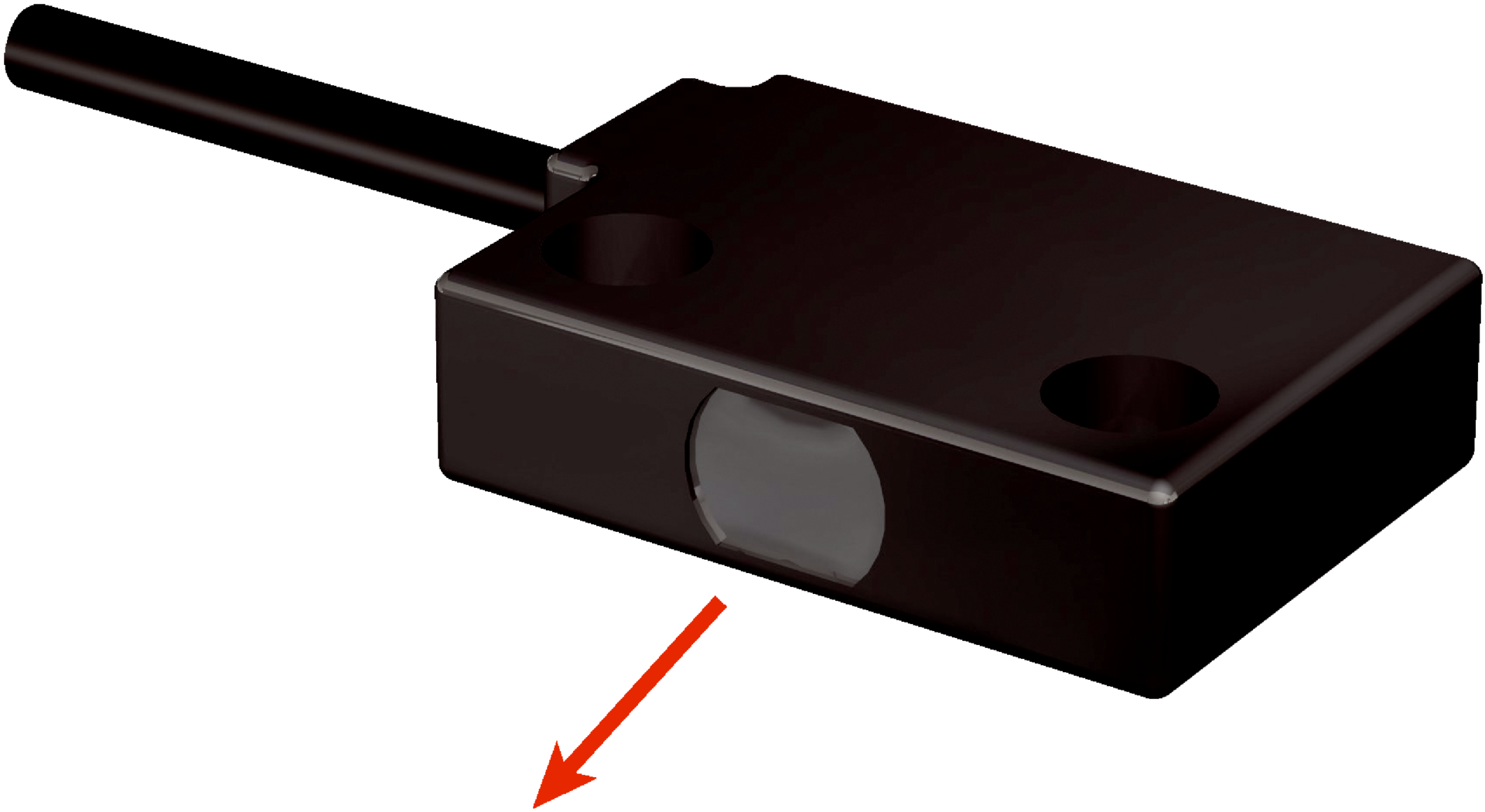

The SICK LL3-TR05 fiber-optic sensor features a through-beam system with a flat 90° deflection fiber-optic head, suitable for high flexible and robotic sensing applications with a maximum sensing range of 3,600 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-TR05 | Fiber-optic sensors
Brand: SICK
SKU: 5325808
Alternatively Known As: Fiber optic sensor LL3-TR05, SICK fiber optic sensor, Through-beam fiber optic sensor, Optical fiber sensor for robotics
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T)
- Sensing range max: 3,600 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.03 mm
- Angle of dispersion: 10°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Polycarbonate (PC)
- Light emission: Radial
- Fiber length: 2,000 mm
- Bending radius: 4 mm
- Dynamic flexibility (robotics): Yes
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Multi-fiber
- Core structure: 7 x Ø 0.25 mm Multi-fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 20mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T)
- Maximum sensing range up to 3,600 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.03 mm
- Optical fiber head with 10° angle of dispersion and integrated lens
- Optical fiber cable can be shortened; adapter end sleeves required
- Radial light emission from polycarbonate optical fiber head
- Fiber length of 2,000 mm with 4 mm bending radius
- Multi-fiber core structure (7 x Ø 0.25 mm)
- Materials: Polycarbonate (PC) head, Polyethylene (PE) sheath, Polymethylmethacrylate (PMMA) fibers
- Operating temperature range from -40 °C to +60 °C
