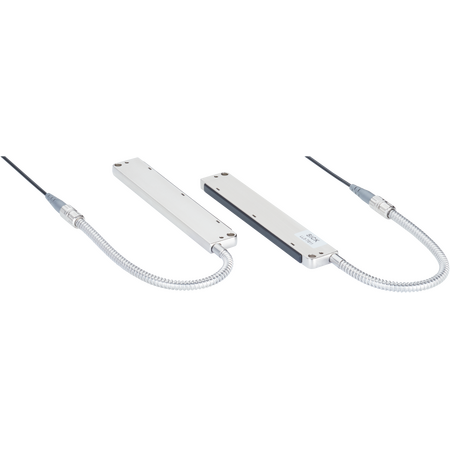

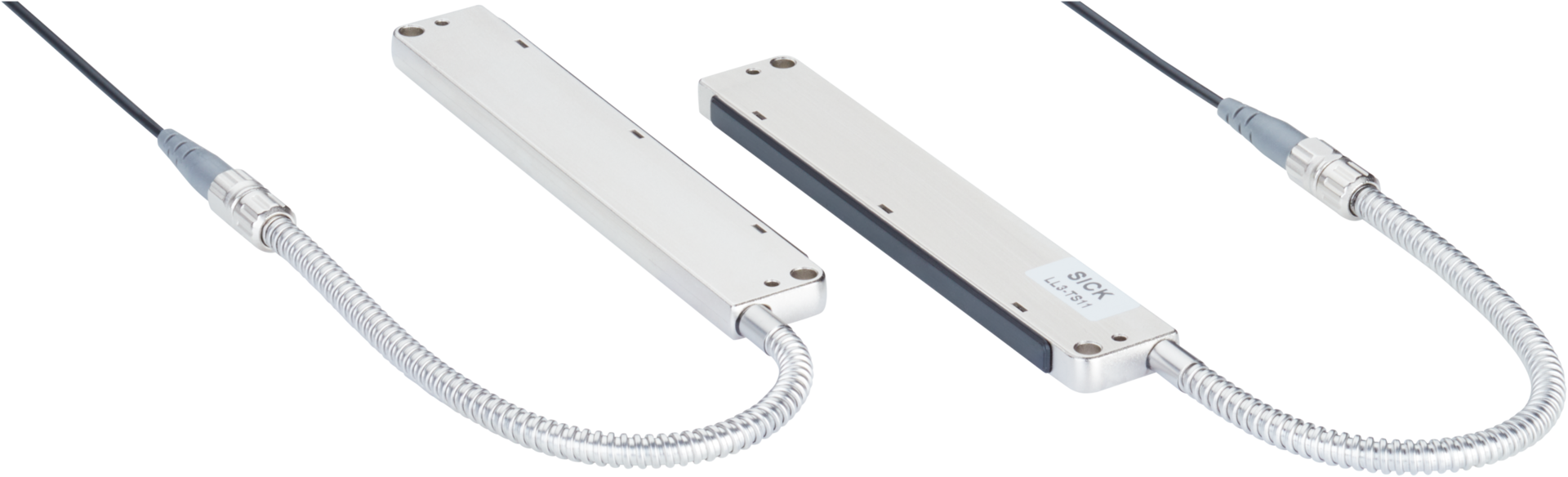

LL3-TS11 | Fiber-optic sensors
The SICK LL3-TS11 fiber-optic sensor features a through-beam system with a flat type fiber-optic head designed for area detection, compatible with multiple fiber-optic amplifiers and suitable for industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-TS11 | Fiber-optic sensors
Brand: SICK
SKU: 5338673
Alternatively Known As: Fiber optic sensor LL3-TS11, SICK fiber optic sensor, Through-beam fiber optic sensor, Area detection fiber optic sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection, Array
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.45 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Fiber-optic cable length: 2000 mm
- Bending radius: 40 mm
- Outside diameter of optical fiber cable: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: 125 x Ø 0.25 mm multi-fiber
- Material: Zinc alloy fiber-optic head, Polyethylene sheath, Polymethylmethacrylate fibers
- Operating temperature range: -55 °C to +70 °C
- Dimensions (H x L x W): 20mm x 2000mm x 100mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Flat type fiber-optic head with 90° deflection and array design
- Compatible with GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex amplifiers
- Minimal object diameter detection of 0.45 mm
- Optical fiber head with 60° angle of dispersion
- Radial light emission from zinc alloy fiber-optic head
- Fiber-optic cable length 2000 mm with 2.2 mm diameter
- Polyethylene sheath and polymethylmethacrylate fibers
- Operating temperature range from -55 °C to +70 °C
- Fiber-optic cable can be shortened without adapter end sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers to ensure optimal performance and safety.
Applications
- Area detection in industrial automation
- Use with compatible fiber-optic amplifiers for precise sensing
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TS11 Fiber-optic Sensor is available for immediate purchase, ideal for industrial automation and area detection applications.
