Trade Discount 20%

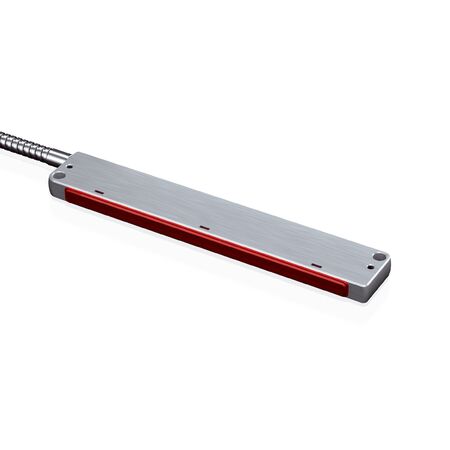

LL3-TS115000 | Fiber-optic sensors
The SICK LL3-TS115000 fiber-optic sensor features a through-beam system with a flat type fiber-optic head designed for precise area detection in industrial applications, compatible with multiple fiber-optic amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-TS115000 | Fiber-optic sensors
Brand: SICK
SKU: 5341038
Alternatively Known As: Fiber optic sensor, Fiber optic cable sensor, Through-beam fiber sensor, SICK fiber optic sensor LL3-TS115000
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection, Array
- Sensing range: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.45 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Fiber-optic cable length: 5000 mm
- Bending radius: 40 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: 125 x Ø 0.25 mm
- Material of fiber-optic head: Zinc alloy
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Included with delivery: FC fiber cutter (5304141)
- Ambient operating temperature: –55 °C to +70 °C
- Dimensions (H x L x W): 20mm x 5000mm x 100mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Flat type fiber-optic head with 90° deflection and array design
- 60° angle of dispersion
- Radial light emission from zinc alloy fiber-optic head
- Fiber-optic cable length of 5000 mm with 2.2 mm outside diameter
- Multi-fiber arrangement with core structure 125 x Ø 0.25 mm
- Fiber-optic cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
- Operating temperature range from –55 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers to ensure optimal performance and safety.
Applications
- Area detection in industrial automation
- Object detection with minimal diameter of 0.45 mm
- Use with compatible fiber-optic amplifiers such as GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TS115000 Fiber-optic Sensor is available for immediate purchase, ideal for industrial automation and precise area detection applications.
