LL3-TV07 | Fiber-optic sensors

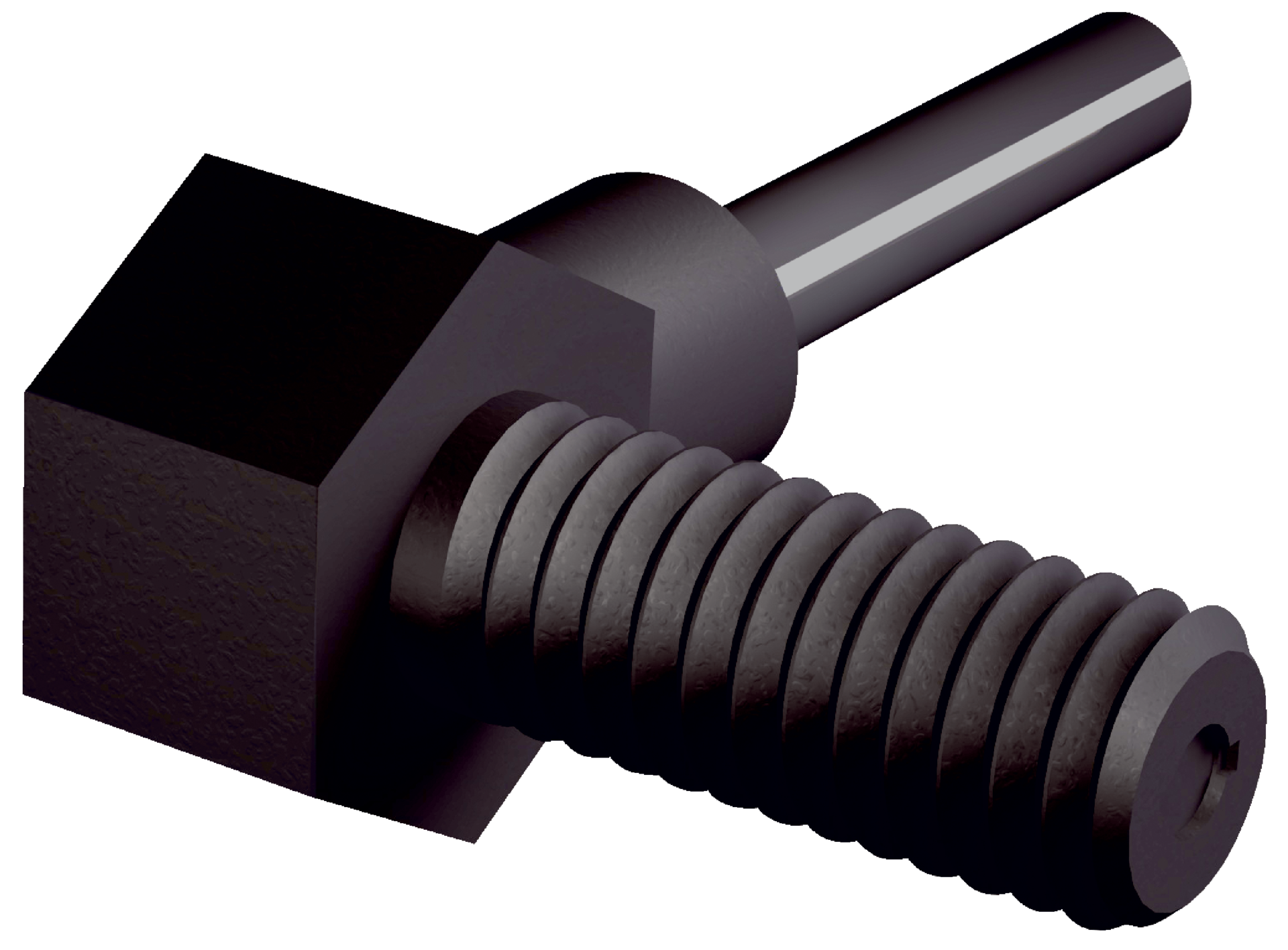

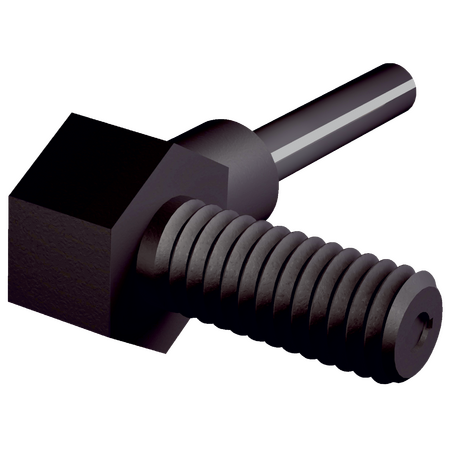

The SICK LL3-TV07 fiber-optic sensor features a threaded sleeve with 90° deflection, suitable for high flexible static applications with a sensing range up to 4,000 mm and minimal object detection of 0.4 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-TV07 | Fiber-optic sensors
Brand: SICK
SKU: 5322548
Alternatively Known As: Fiber optic sensor LL3-TV07, SICK fiber optic cable sensor, Through-beam fiber optic sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: Up to 4,000 mm depending on amplifier and operating mode
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 15°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Polyamide (PA)
- Light emission: Radial
- Thread diameter (housing): M4
- Fiber length: 2,000 mm
- Bending radius: 2 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head with 90° deflection
- Maximum sensing range up to 4,000 mm depending on amplifier and operating mode
- Minimal object diameter detection of 0.4 mm
- Integrated lens with 15° angle of dispersion
- Optical fiber cable can be shortened without adapter end sleeves
- Radial light emission from polyamide (PA) optical fiber head
- Fiber length of 2,000 mm with 2 mm bending radius
- Sheath made of polyethylene (PE) and fibers of polymethylmethacrylate (PMMA)
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- High flexible static sensing applications requiring precise object detection
- Industrial automation and process control environments
- Use with compatible fiber-optic amplifiers such as GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TV07 fiber-optic sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
