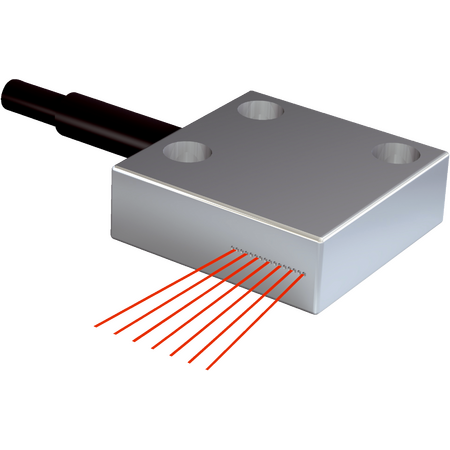

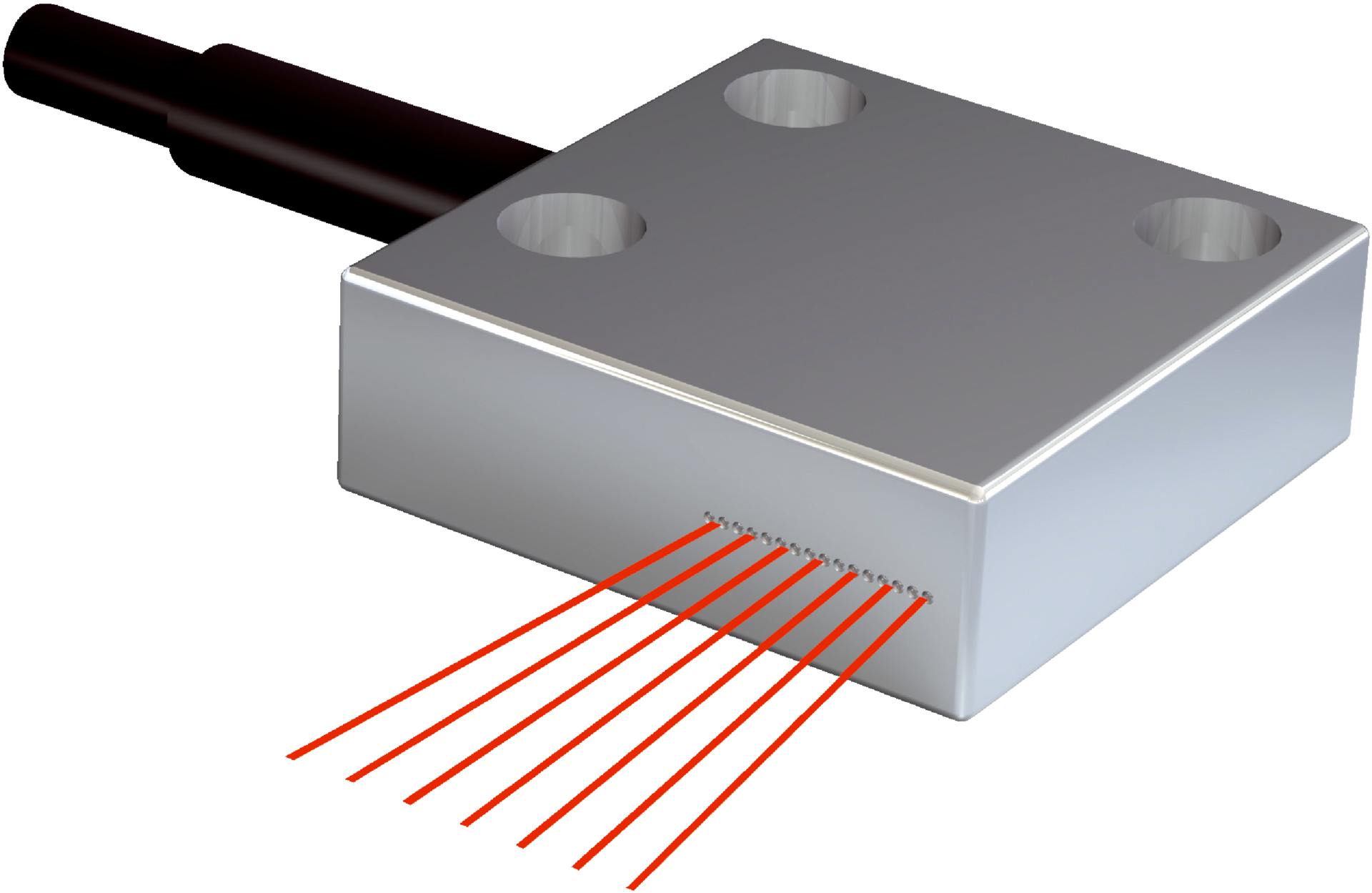

LL3-TZ06 | Fiber-optic sensors
The SICK LL3-TZ06 fiber-optic sensor features a through-beam system with a flat type fiber-optic head designed for precise area detection in industrial applications, compatible with various fiber-optic amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LL3-TZ06 | Fiber-optic sensors
Brand: SICK
SKU: 5325938
Alternatively Known As: Fiber optic sensor LL3-TZ06, SICK fiber optic sensor, Through-beam fiber optic sensor, Area detection fiber optic sensor
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection, Array
- Sensing range max: 3600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.45 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Included with delivery: FC fiber cutter (5304141)
- Optical fiber head material: Copper-zinc alloy (CuZn)
- Light emission: Radial
- Fiber-optic head array width: 5 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: 16 x Ø 0.265 mm Multi-fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 20mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Flat type fiber-optic head with 90° deflection and 60° angle of dispersion
- Compatible with multiple fiber-optic amplifiers
- Fiber-optic cable can be shortened without adapter end sleeves
- Radial light emission with 5 mm fiber-optic head array width
- Robust construction with copper-zinc alloy head and polyethylene sheath
- Multi-fiber core structure with 16 fibers of 0.265 mm diameter each
- Wide ambient operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards.
Applications
- Area detection in industrial automation
- Use with compatible fiber-optic amplifiers such as GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life
- Energy-efficient operation with minimal power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TZ06 Fiber-optic Sensor is available for immediate purchase, ideal for industrial automation and precise area detection applications.
