LLTE-A2040111020E4 | Fiber-optic sensors

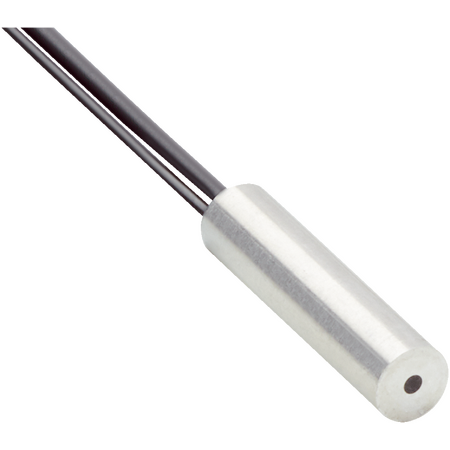

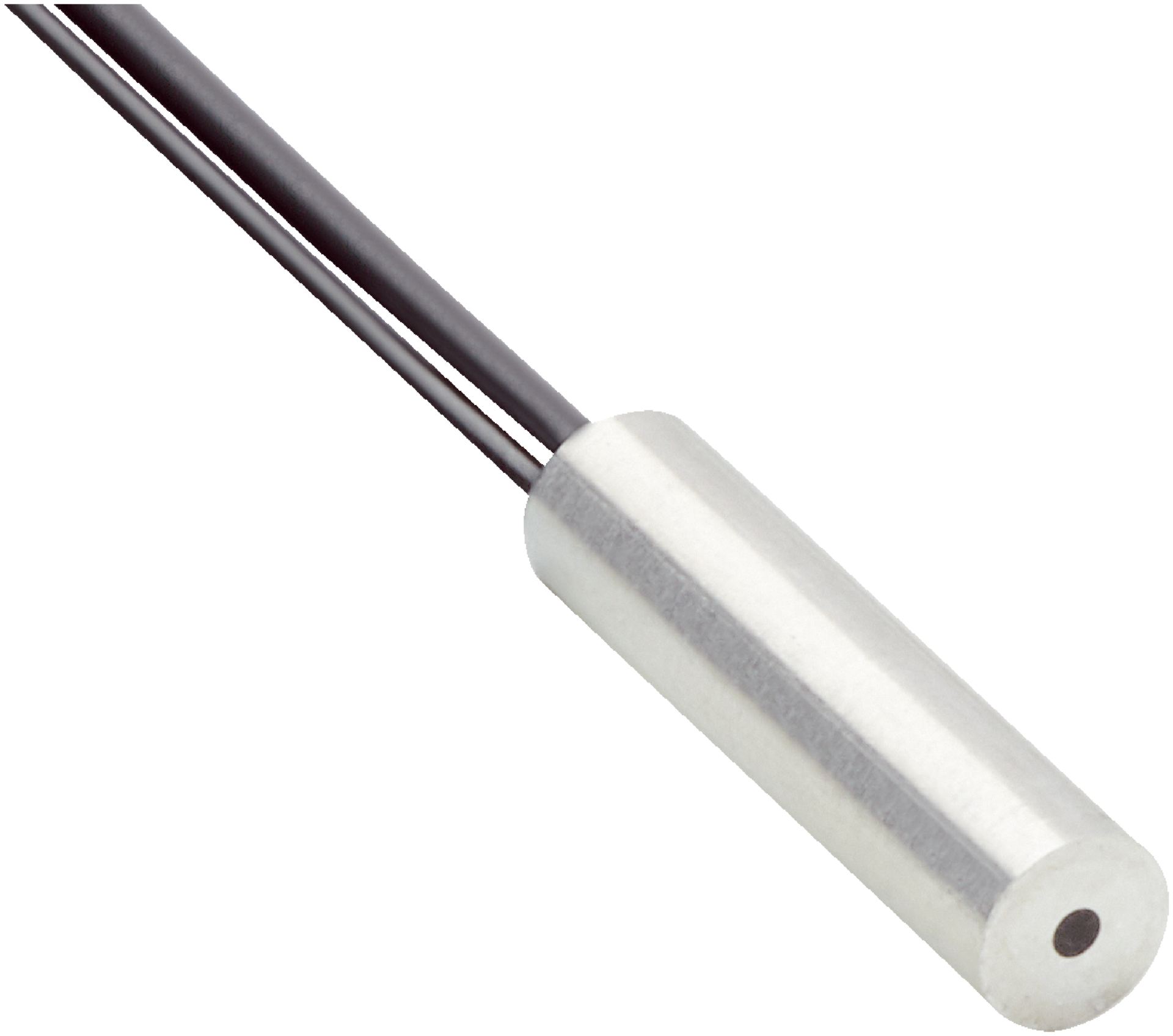

The SICK LLTE-A2040111020E4 fiber-optic sensor cable features a smooth sleeve stainless steel head, axial light emission, and compatibility with multiple fiber-optic amplifiers for precise proximity sensing in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LLTE-A2040111020E4 | Fiber-optic sensors
Brand: SICK
SKU: 2115016
Alternatively Known As: Fiber optic sensor cable, fiber optic proximity sensor cable, SICK fiber optic cable LLTE-A2040111020E4
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes (1 x LLAC-AB10 / 1 x LLAC-AB13)
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 4 mm
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: Ø 0.5 mm Coaxial
- Sheath material: Polyethylene (PE)
- Fibers material: PMMA
- Operating temperature range: -40 °C to +60 °C
- Dimensions (H x L x W): 4mm x 2000mm x 4mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve fiber-optic head
- Axial light emission with 60° angle of dispersion
- Compatible with infrared light: No
- Optical fiber cable can be shortened
- Adapter end sleeves required (1 x LLAC-AB10 / 1 x LLAC-AB13)
- Supplied with fiber cutter and fiber adapter bushings
- Stainless steel optical fiber head with 4 mm smooth sleeve diameter
- Polyethylene (PE) sheath with PMMA fibers
- Coaxial fiber arrangement with 0.5 mm core diameter
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper handling and connection to compatible amplifiers.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T)
- Industrial automation and detection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LLTE-A2040111020E4 fiber-optic sensor cable is available for immediate purchase, ideal for industrial automation and proximity sensing applications.
