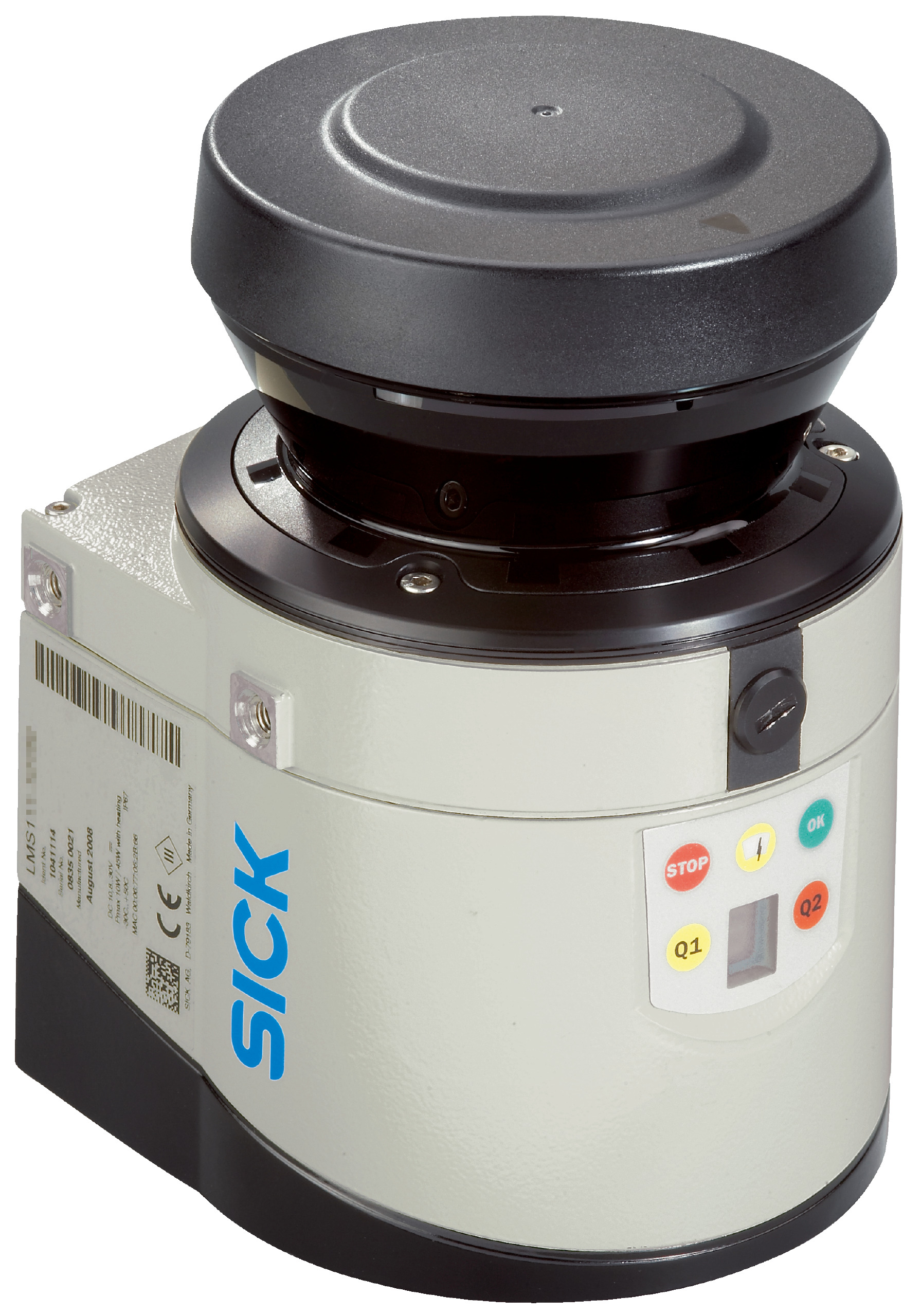

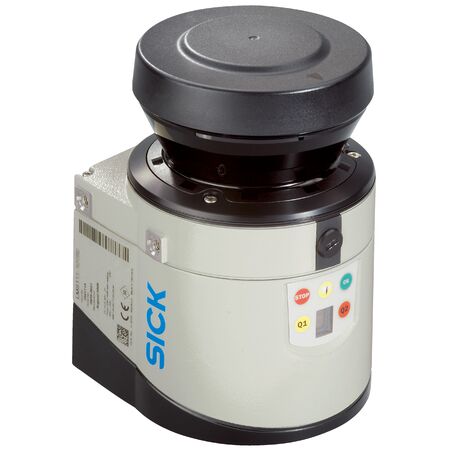

LMS141-05100 Security Core | Infrared Laser Scanner | IP67 Rated | 270° Aperture Angle | by SICK
The LMS141-05100 Security Core is an advanced infrared laser scanner designed for perimeter and area surveillance. With a wide horizontal aperture angle of 270° and a working range of up to 40 m, it excels in both indoor and outdoor applications. Built for reliability, it features an IP67 rated enclosure and integrated heating for operation in harsh environments, making it ideal for industrial and commercial safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° or 0.5° selectable
- Scanning frequency: 25 Hz or 50 Hz
- Working range: 0.5 m to 40 m
- Scanning range at 10% remission factor: 30 m
- Scanning range at 90% remission factor: 40 m
- Amount of evaluated echoes: 2
- Heating: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 120 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: Typ. 12 mm (0.5 m to 10 m), 20 mm (10 m to 20 m), 35 mm (20 m to 40 m)
- Number of field sets: 4
- Simultaneous evaluation cases: 4
- Ethernet: TCP/IP, 10/100 MBit/s
- Serial interface: RS-232, 9.6 kBaud to 115.2 kBaud
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Ambient operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Ambient light immunity: 80,000 lx
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270°
- Scanning frequency options of 25 Hz and 50 Hz
- Angular resolution selectable between 0.25° and 0.5°
- Working range from 0.5 m up to 40 m
- Fog correction capability for enhanced reliability
- IP67 rated enclosure for dust and water protection
- Integrated heating for operation in cold environments
- Multiple digital inputs and outputs including relay and digital signals
- Ethernet and RS-232 serial communication interfaces
- 7-segment display with LED indicators for device status and warnings
- High electromagnetic compatibility and vibration/shock resistance
- Long mean time between failures (MTBF) exceeding 100 years
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance with safety standards and optimal device performance.
Applications
- Security: Perimeter and area surveillance
- Outdoor: Harsh environmental conditions
- Indoor: Industrial and commercial safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with typical 8 W operation and efficient heating system
- Durable IP67 housing reduces environmental impact by extending product lifespan
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK LMS141-05100 Security Core is available for immediate purchase, ideal for security and safety monitoring applications in both indoor and outdoor environments.
