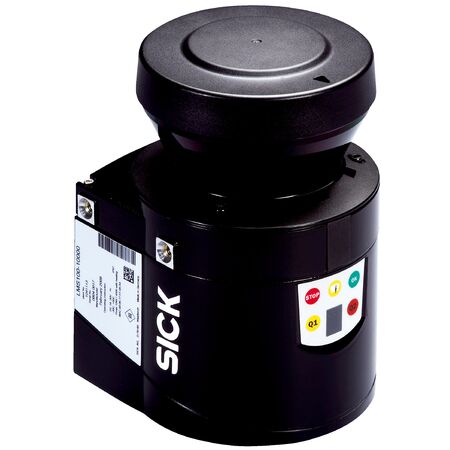

LMS142-15100 Security Prime Laser Scanner | Infrared Light Source | IP67 Rated | 270° Aperture Angle | by SICK
The LMS142-15100 Security Prime Laser Scanner features an infrared light source and a wide 270° aperture angle, making it ideal for perimeter and area surveillance in both indoor and outdoor environments. With a robust IP67 rating for dust and water protection, this scanner is built for industrial safety monitoring and can operate in harsh conditions, ensuring reliable performance and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° and 0.5° options
- Scanning frequency: 25 Hz, 50 Hz
- Working range: 0.5 m to 40 m
- Scanning range at 10% remission: 30 m
- Scanning range at 90% remission: 40 m
- Amount of evaluated echoes: 2
- Heating: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: Typ. 12 mm (0.5 m to 10 m), 20 mm (10 m to 20 m), 35 mm (20 m to 40 m)
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Interfaces: Ethernet TCP/IP, RS-232, CAN
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Ambient light immunity: 80,000 lx
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m up to 40 m with fog correction
- IP67 rated enclosure for dust and water protection
- Heating function for operation in cold environments
- Multiple interfaces including Ethernet TCP/IP, RS-232, and CAN
- 7-segment display with LEDs for device status and warnings
- High electromagnetic compatibility and vibration/shock resistance
- Long MTBF and MTTFD greater than 100 years
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical standards to ensure optimal performance and compliance.
Applications
- Security: Perimeter and area surveillance
- Outdoor: Harsh environmental conditions
- Indoor: Industrial and commercial safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with typical 8 W operation and efficient heating system
- Durable IP67 housing reduces need for frequent replacements
- Long service life reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LMS142-15100 Security Prime Laser Scanner is available for immediate purchase, ideal for security and industrial safety applications requiring reliable laser scanning technology.
